Description

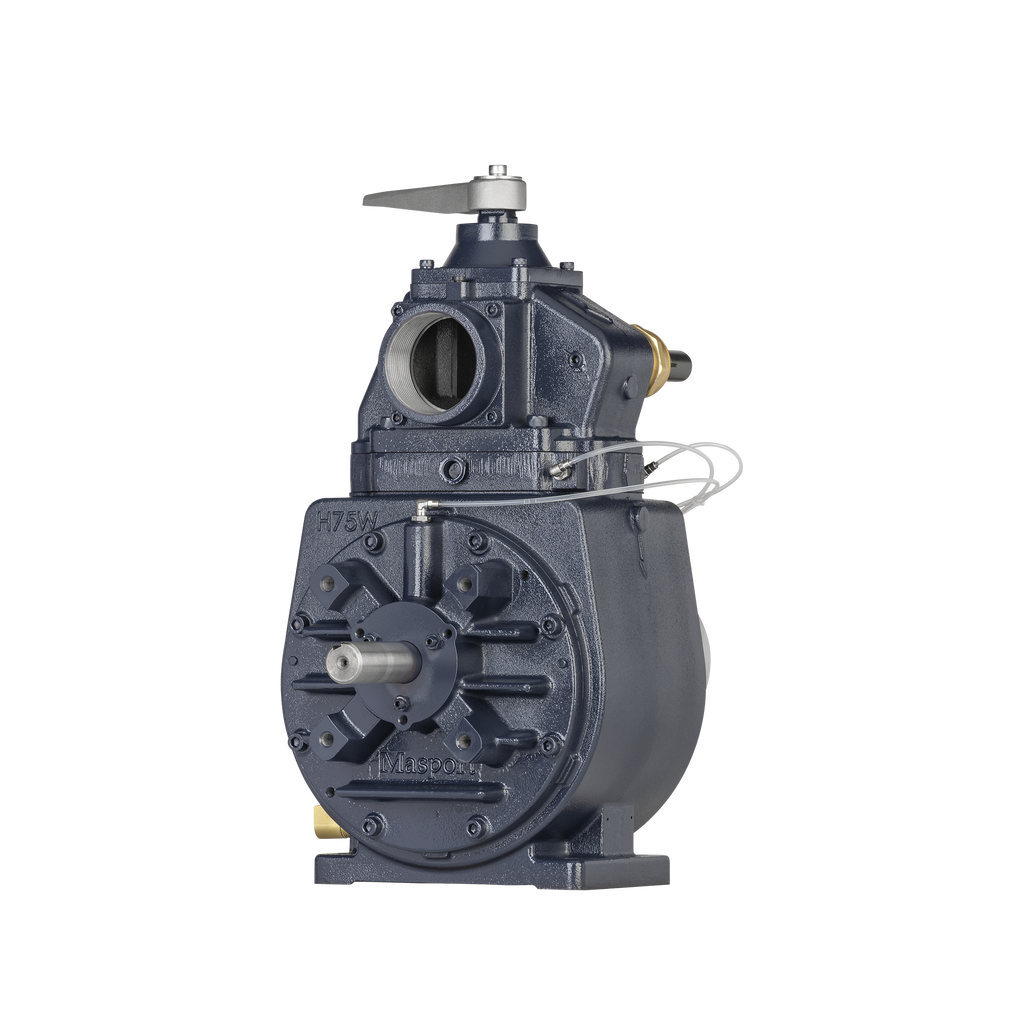

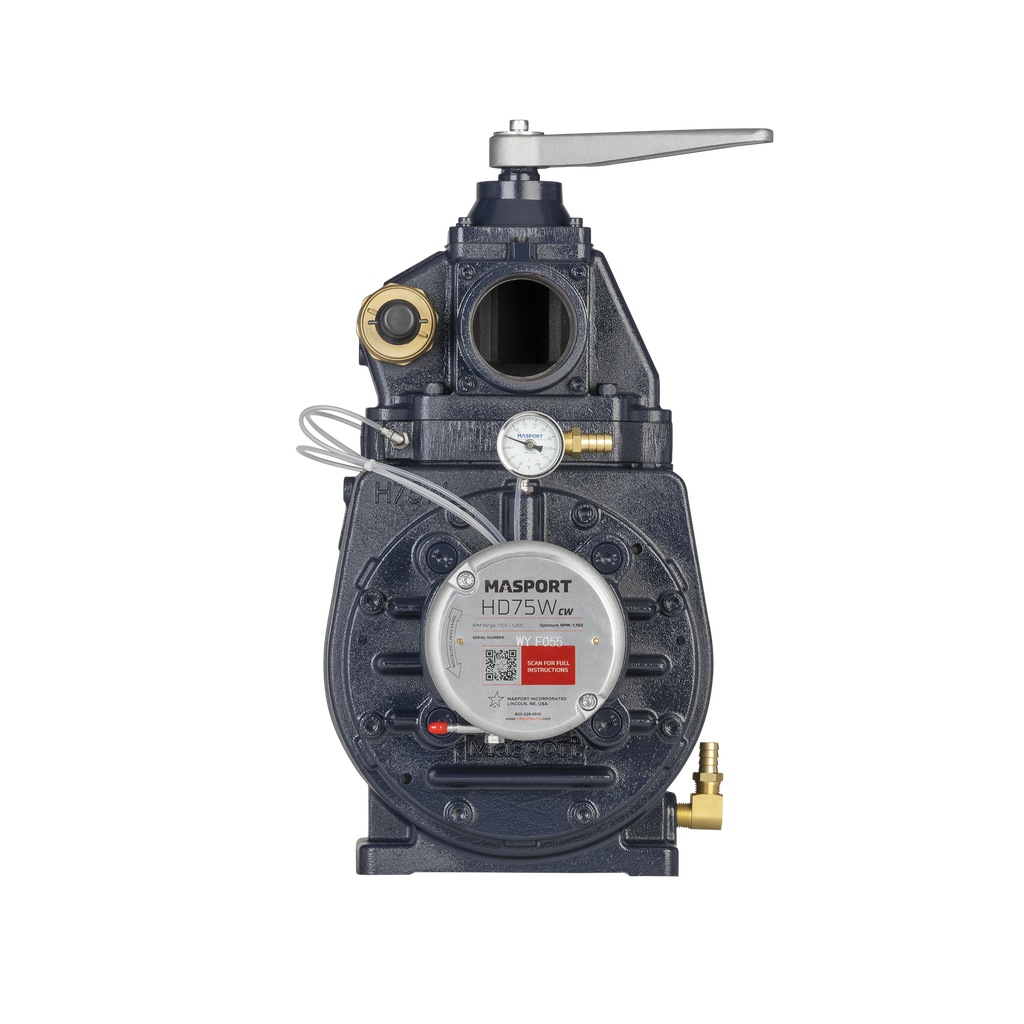

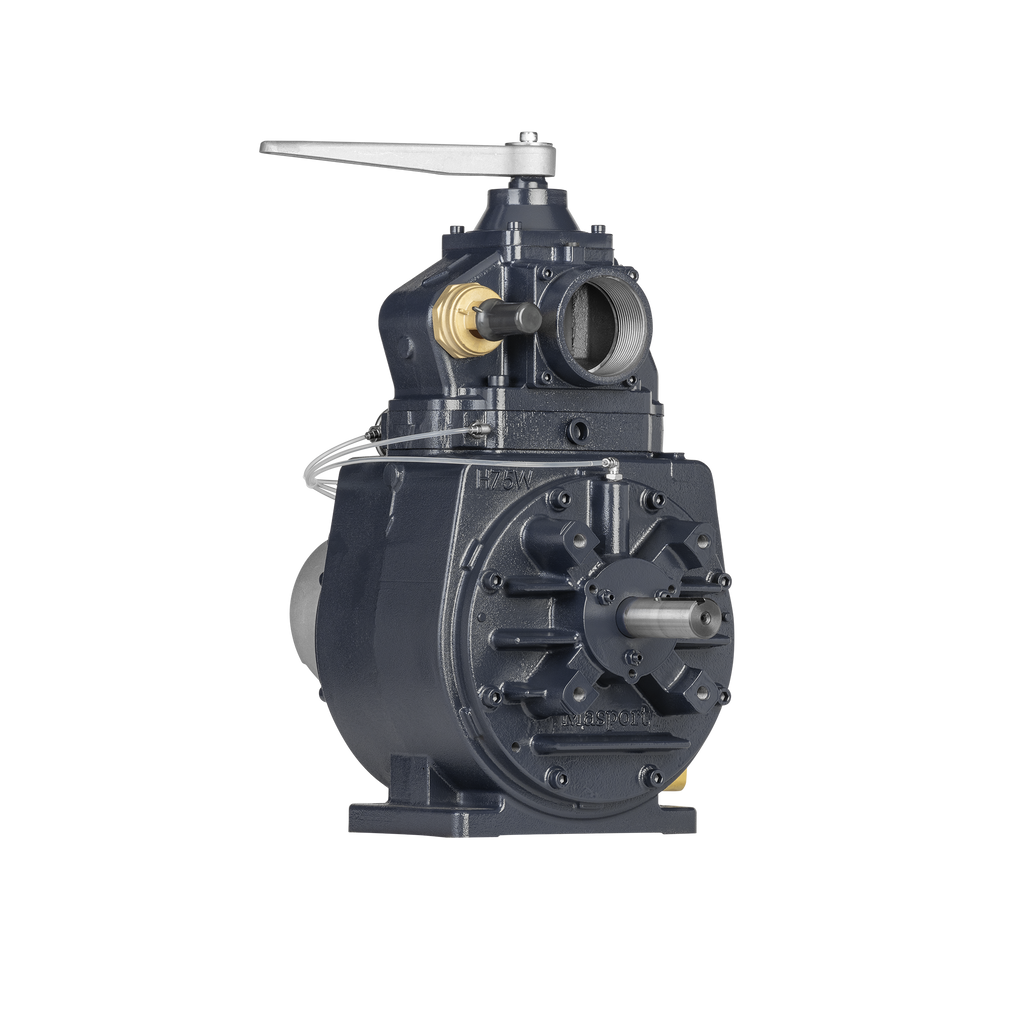

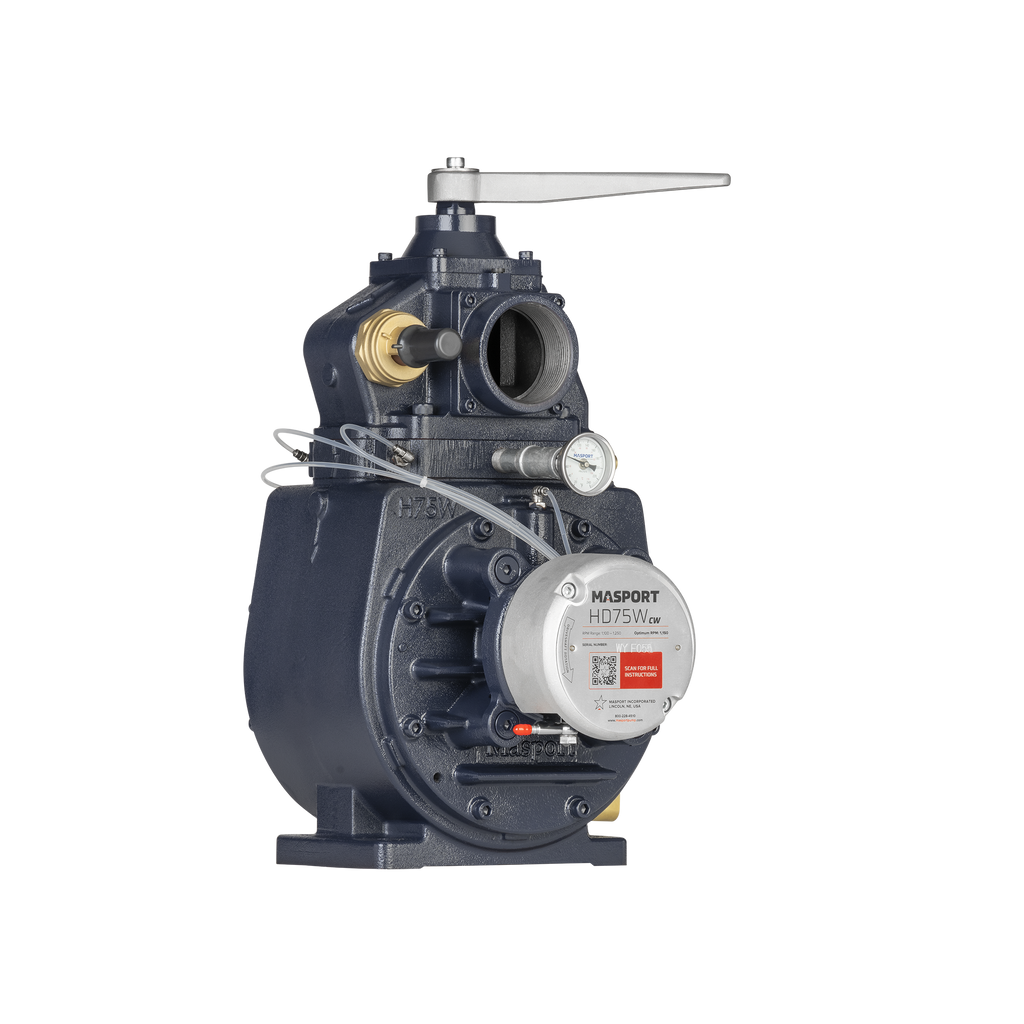

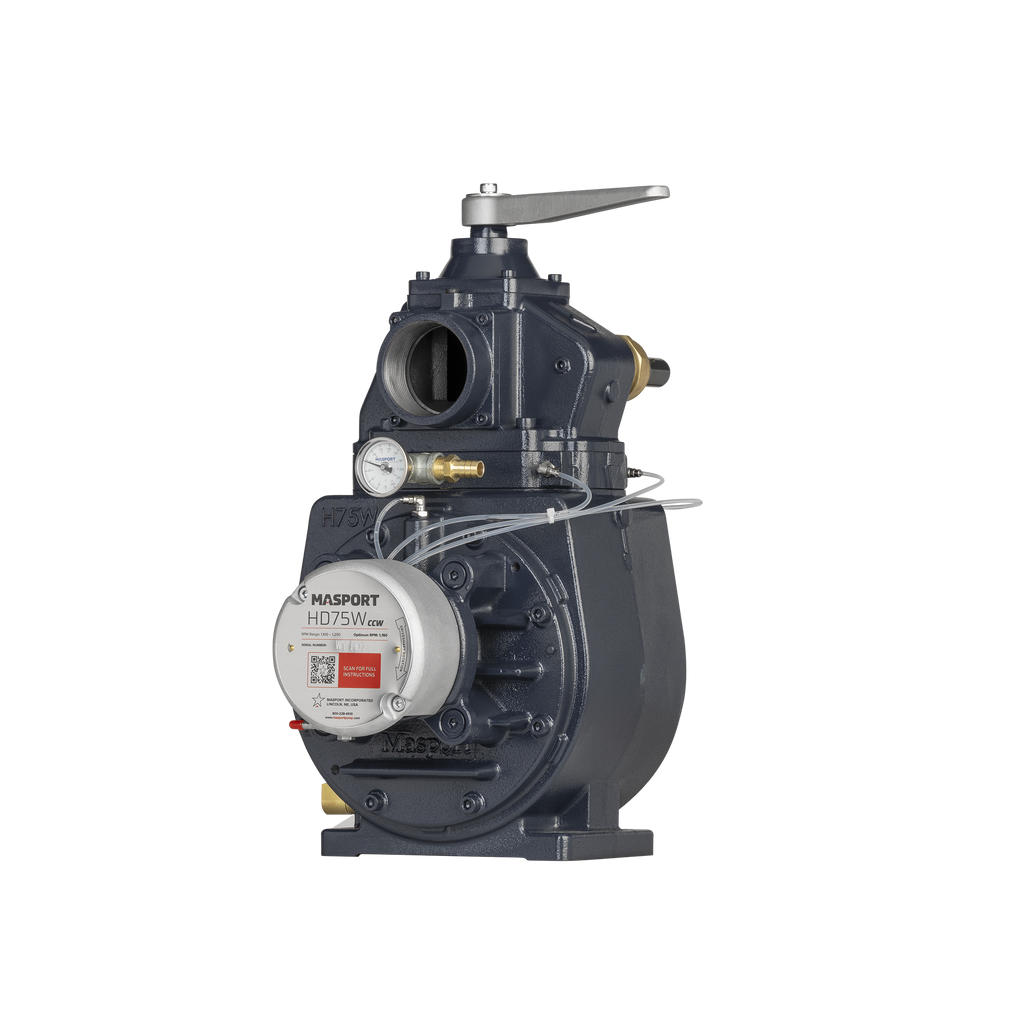

The Masport HD75W is a liquid‑cooled vacuum/pressure pump delivering 230 CFM. It replaces the HXL75WV and is built for higher continuous vacuum operation.
NOTE: This pump is offered with a CLOCKWISE or COUNTER-CLOCKWISE rotation. Select appropriate option.
Counter-Clockwise
Masport Part #: 969770
Pik Rite Part #: VP-MAS-HD75W
Clockwise
Masport Part #: 969790
Pik Rite Part #: VP-MAS-HD75W-1
Specifications:
Airflow: 230 CFM
Function: Vacuum / Pressure
Cooling: Liquid‑cooled
Oiling System: Automatic oil pump
Port Size: 3"
Weight: 260 lbs
