Description

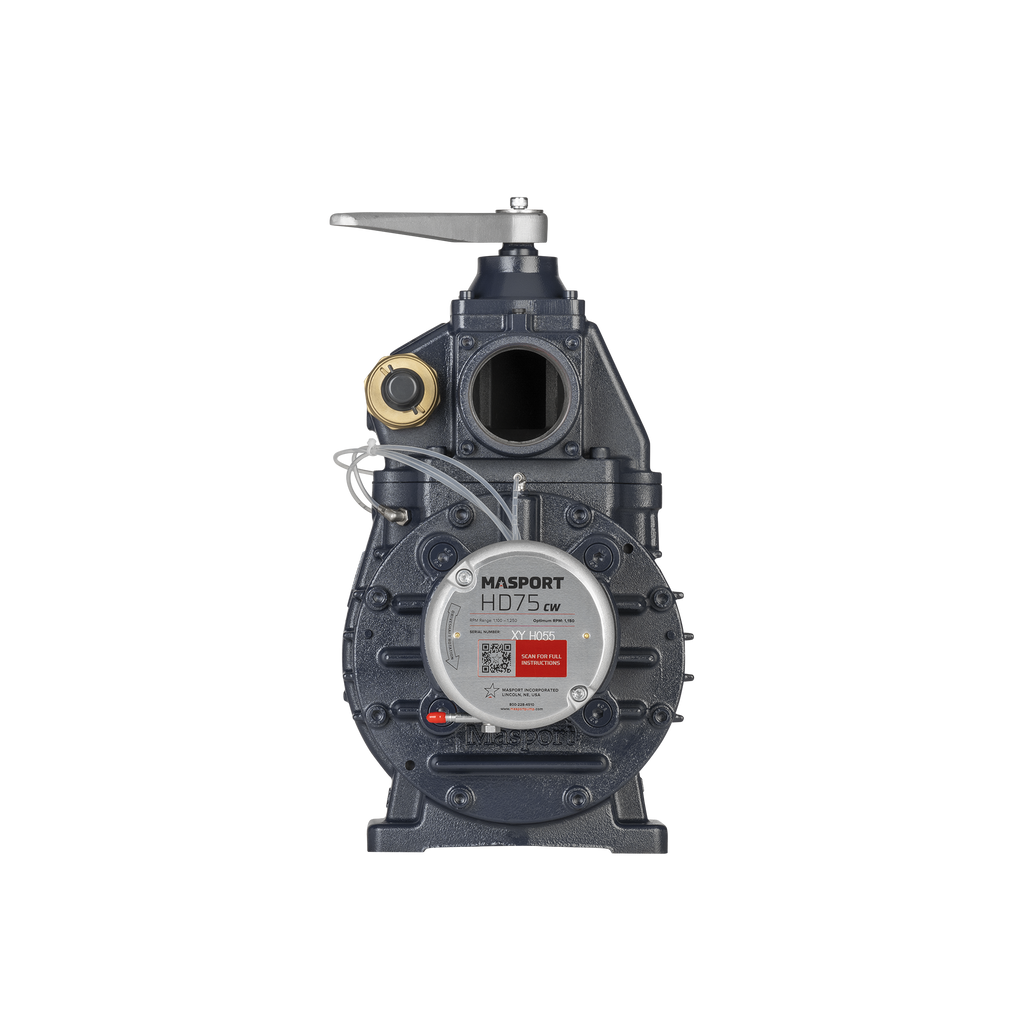

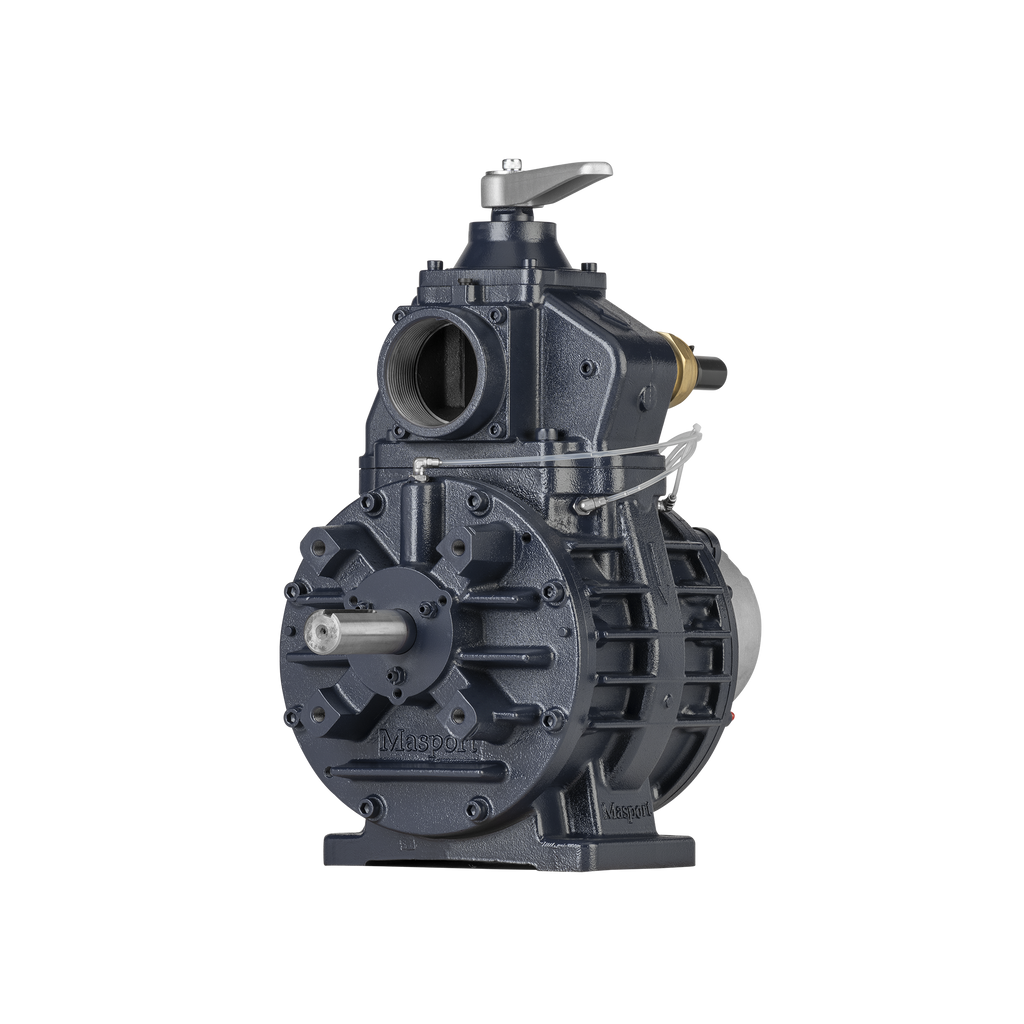

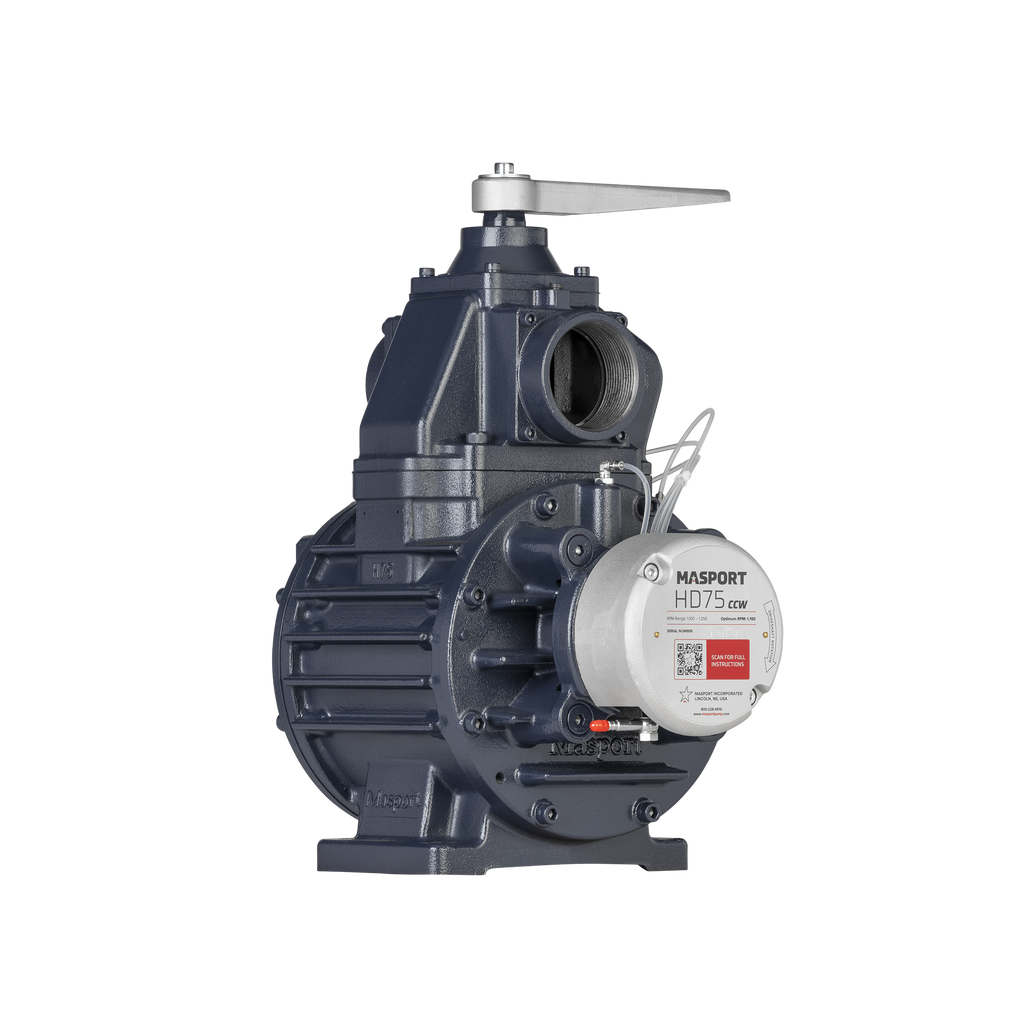

The Masport HD75V is an air‑cooled rotary vane vacuum/pressure pump producing 230 CFM. It replaces the HXL75V and is designed for mid‑size tank applications.
NOTE: This pump is offered with a CLOCKWISE or COUNTER-CLOCKWISE rotation. Select appropriate option.
Counter-Clockwise
Masport Part #: 969750
Pik Rite Part #: VP-MAS-HD75V
Clockwise
Masport Part #: 969760
Pik Rite Part #: VP-MAS-HD75V-1
Key Specifications
- Airflow, Free Air: 230 CFM
- Airflow, 18”: 177 CFM
- Cooling: Air‑cooled
- Oiling System: Automatic oil pump
- Port Size: 3"
- Weight: 230 lbs.
