Description
The Masport HD4F is a vacuum‑only, air‑cooled rotary vane pump rated at 165 CFM. It is intended for systems that do not require pressure operation.
This pump replaces the Masport HXL4F.
NOTE: This pump is offered with a CLOCKWISE or COUNTER-CLOCKWISE rotation. Select appropriate option.

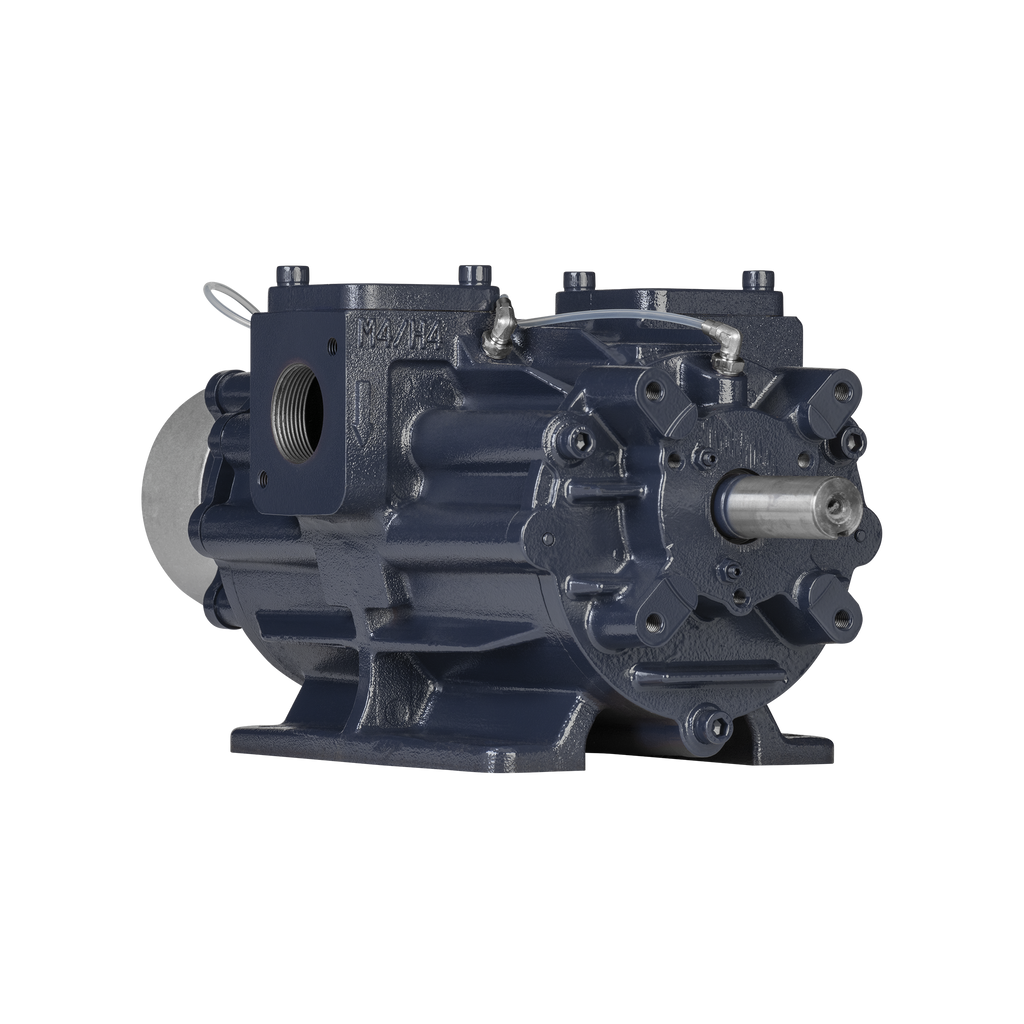

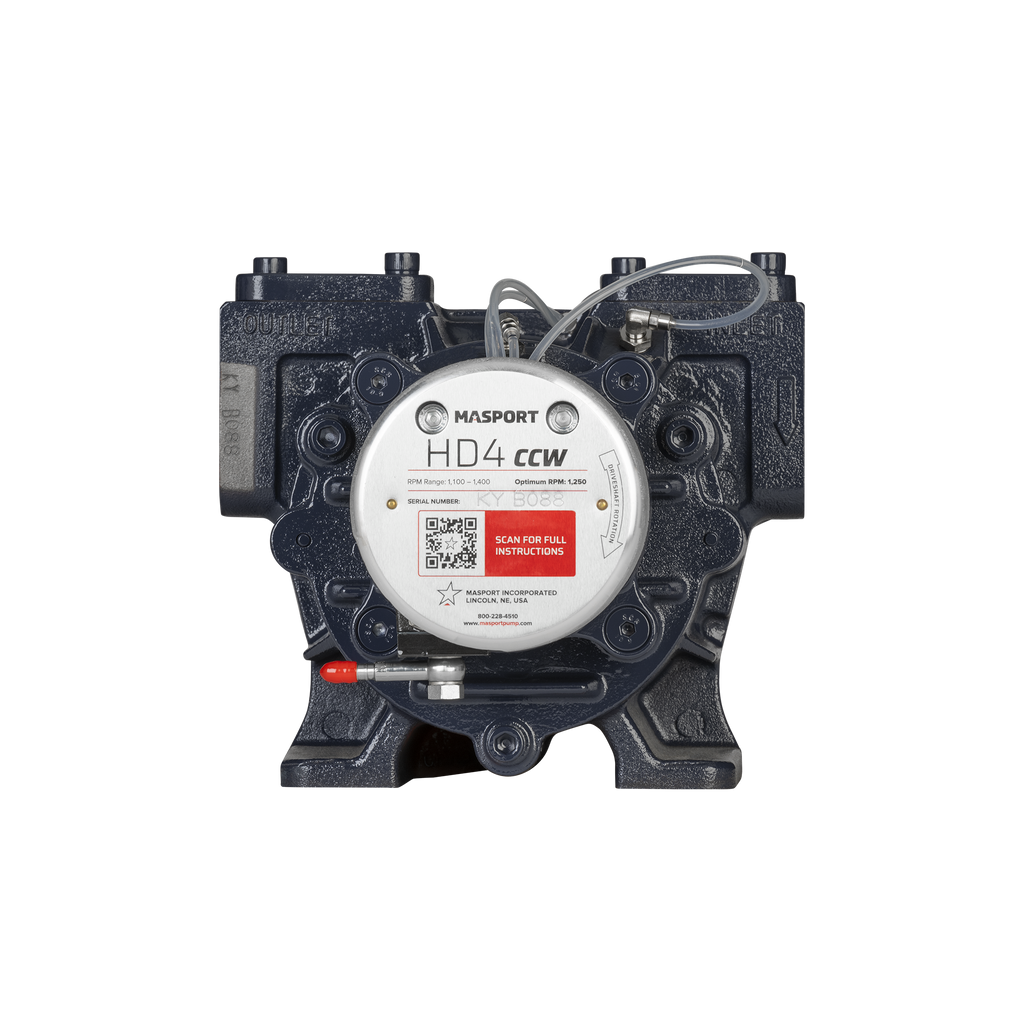

Counter-Clockwise
Masport Part #: 969455
Pik Rite Part #: VP-MAS-HD4F

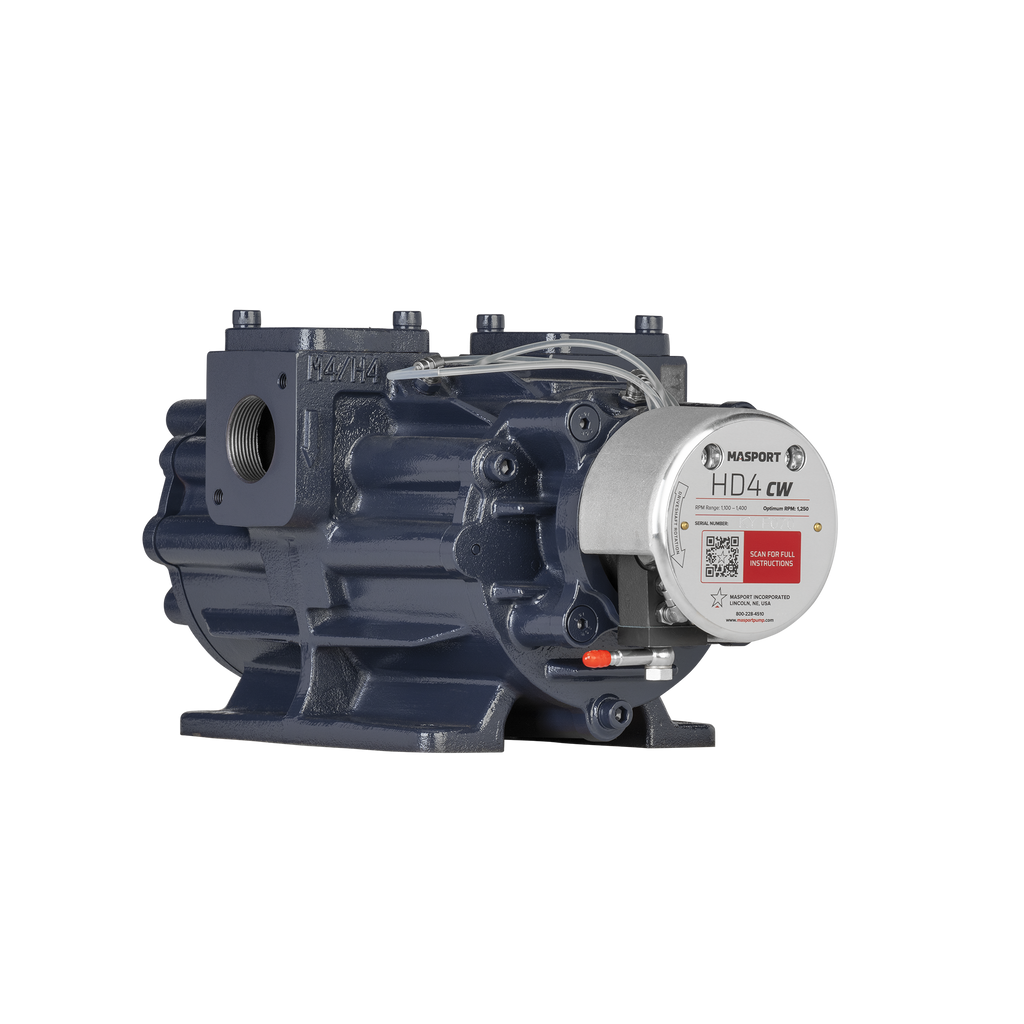

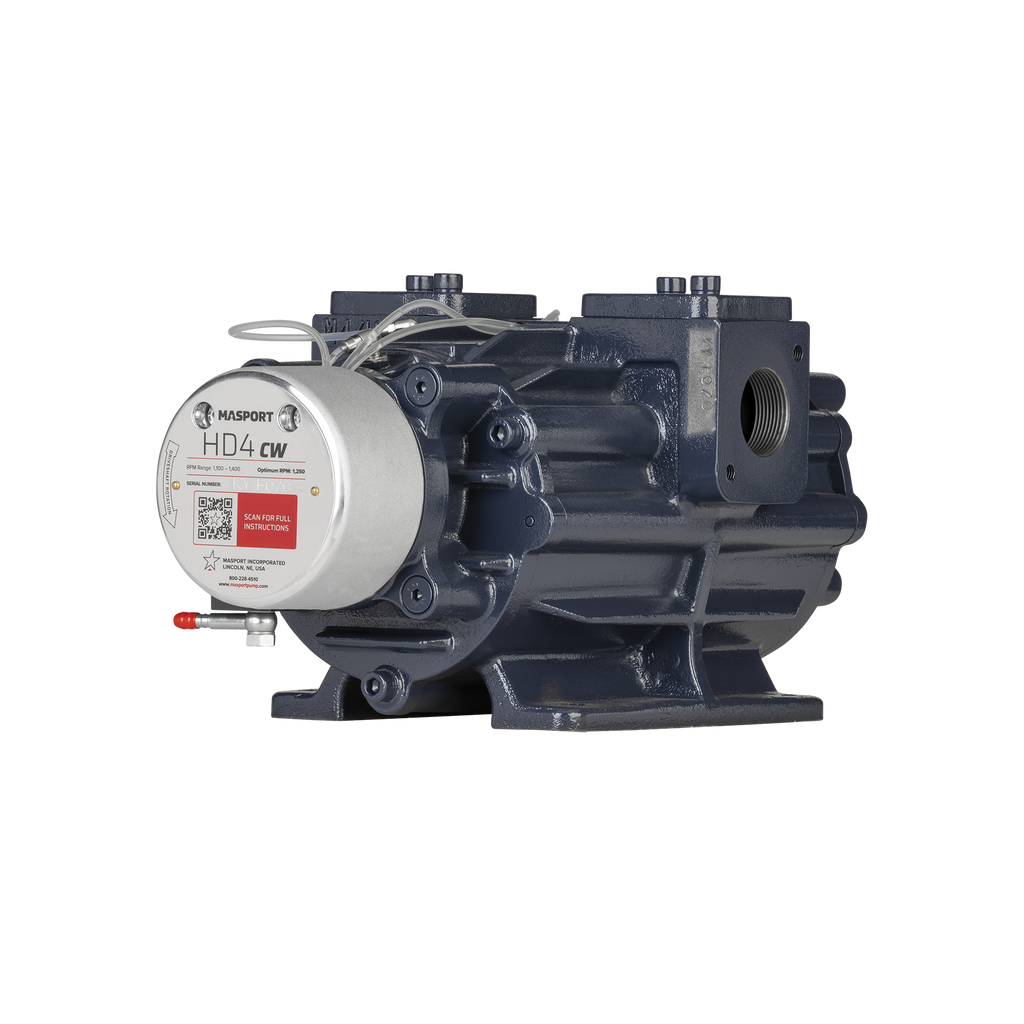

Clockwise
Masport Part #: 969465
Pik Rite Part #: VP-MAS-HD4F-1
Key Specifications
- Airflow, Free Air: 165 CFM
- Airflow, 18”: 132 CFM
- Function: Vacuum only
- Cooling: Air‑cooled
- Oiling System: Automatic oil pump
- Port Size: 1 1/2"
- Drive Shaft: 1 3/8"
- Weight: 175 lbs
