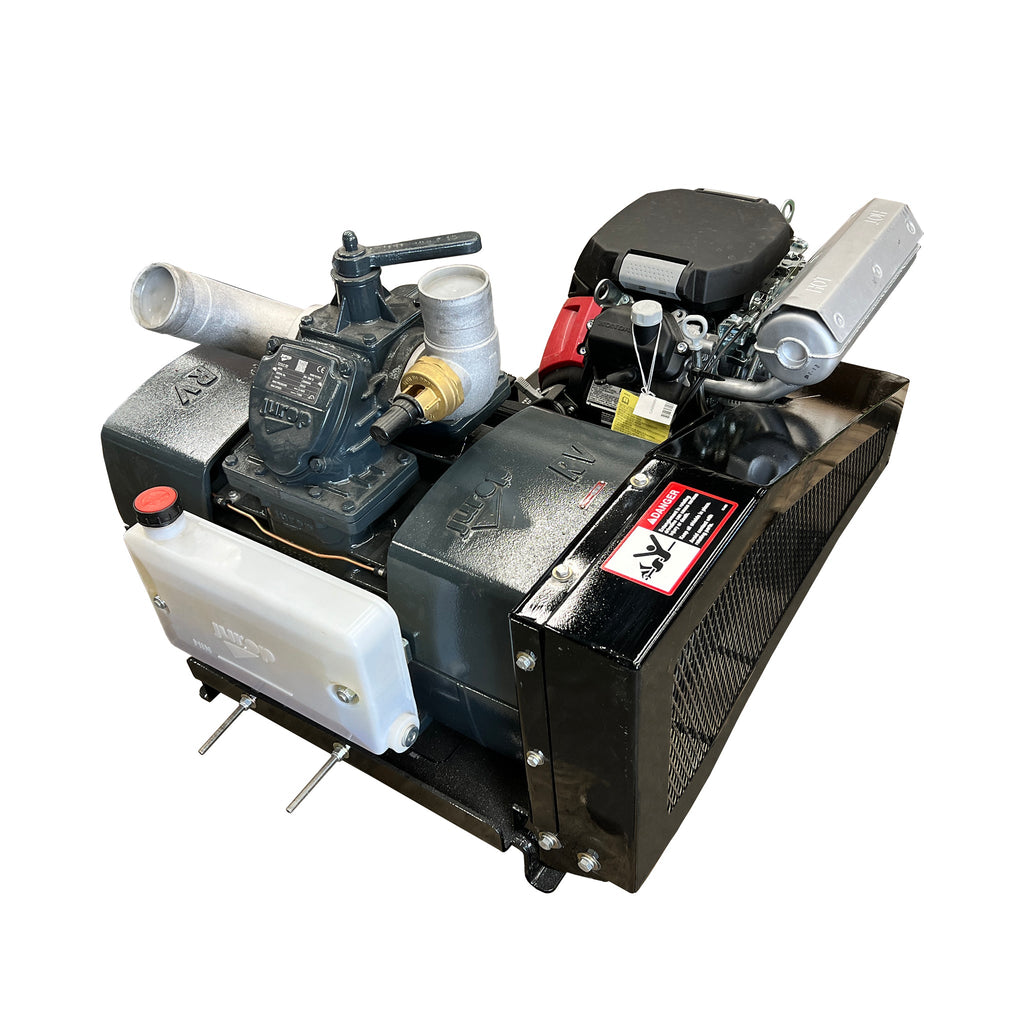

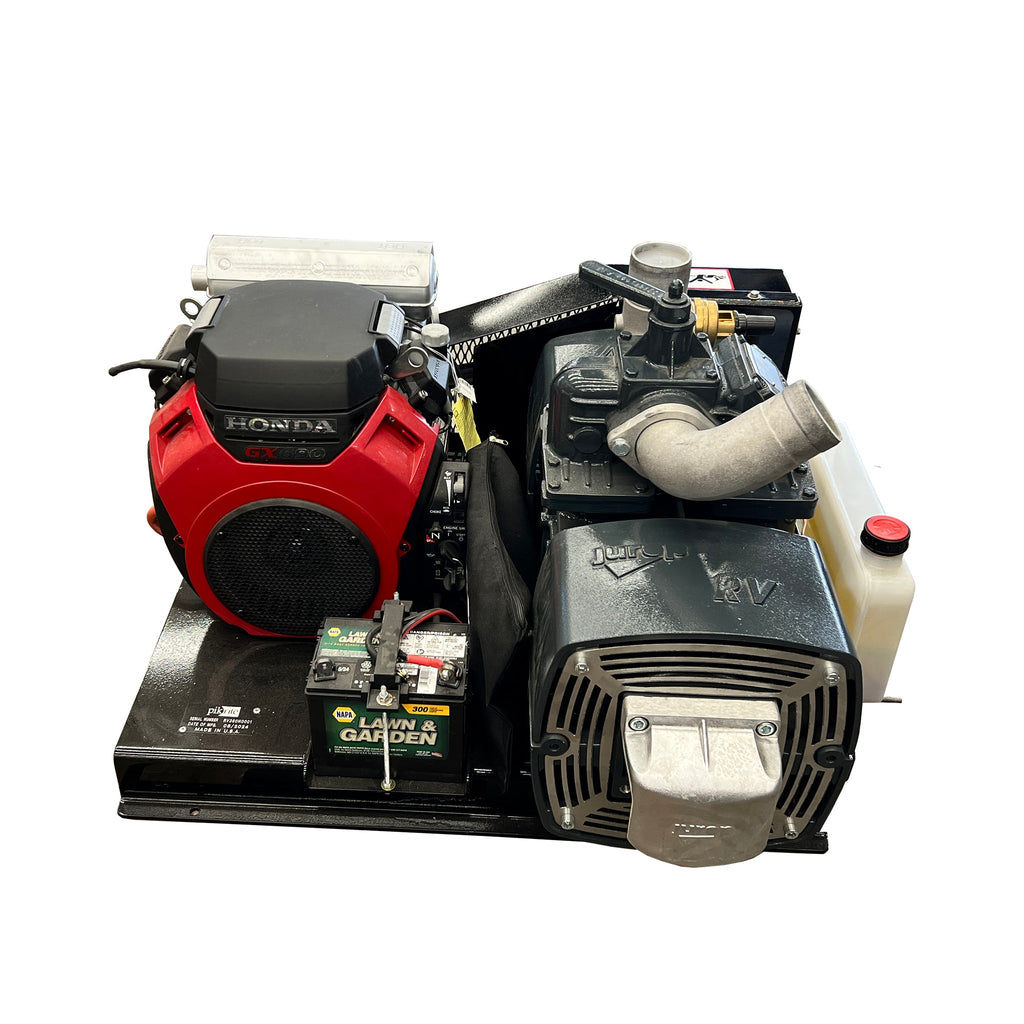

Jurop RV360 Vacuum Pump Package with Honda GX690 22HP Engine - Electric Start

Vacuum Pump/Engine Package Engineered by Pik Rite.

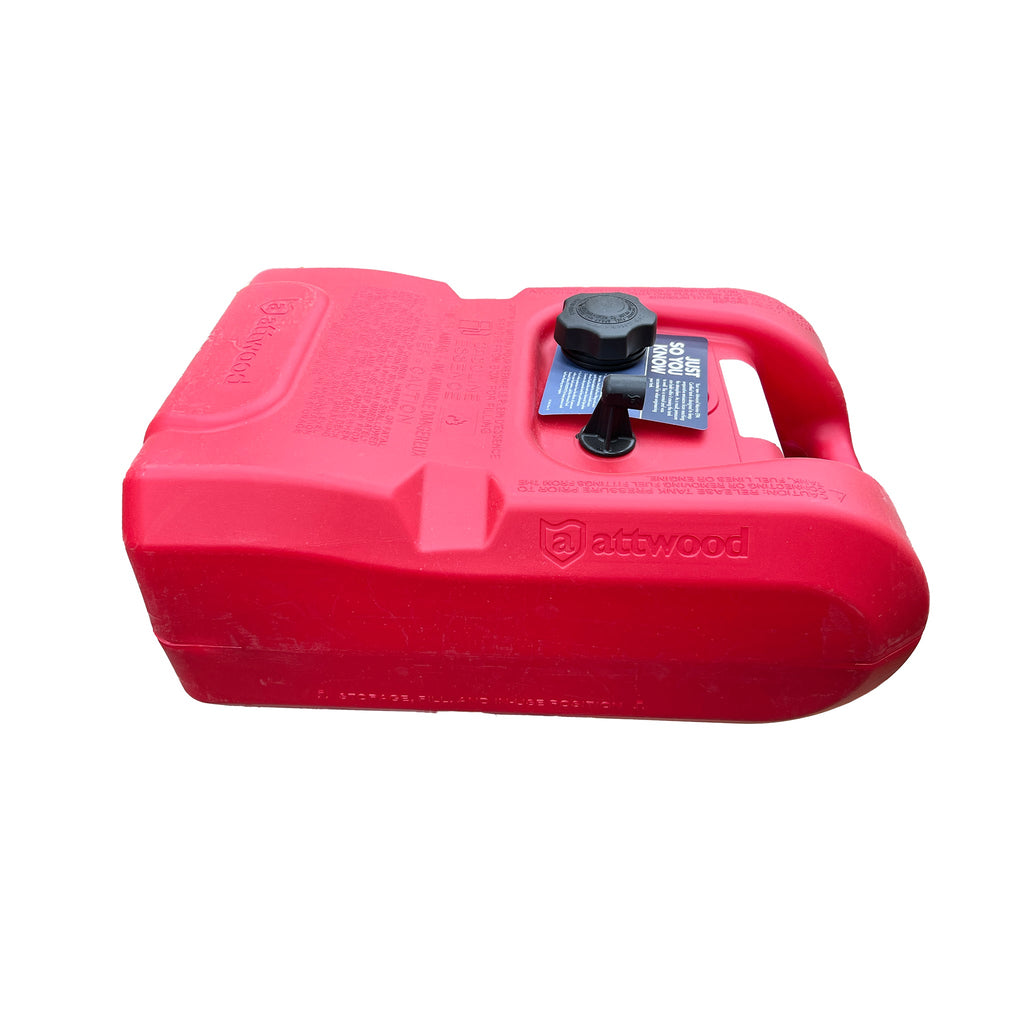

This package integrates the Jurop RV360 Vacuum Pump with a 22HP Honda GX690 and 12 Volt Lawn and Garden battery for a turnkey solution ready to be mounted and plumbed. Belt drive configuration. Separate fuel tank included.

Package Weight: 725 lbs.

Pik Rite Part #: ENG-RV360

RV360 Specifications

• Rotation: Counter-Clockwise
• RPM Range: 1100 - 1300
• Max Continuous Vacuum: 28” / 92%
• CFM at Free Air: 360
• CFM at 18”: 332
• Max Intermittent Pressure: 30 PSI
• Horsepower: 16
• Noise at 18”: 76 dB
• Oil Tank Capacity: 1 gallon
• Recommended Oil: ISO 150


Honda GX690 Specifications

• 22 HP Horizontal V-Twin OHV Engine with Electric Start and 17 AMP Charging System

Downloads

Jurop RV360 Specifications at a Glance (.pdf)

Jurop RV360 Dimensions (.pdf)

Honda Engine Manual (.pdf)

Jurop Pumps Brochure (.pdf)
