Description

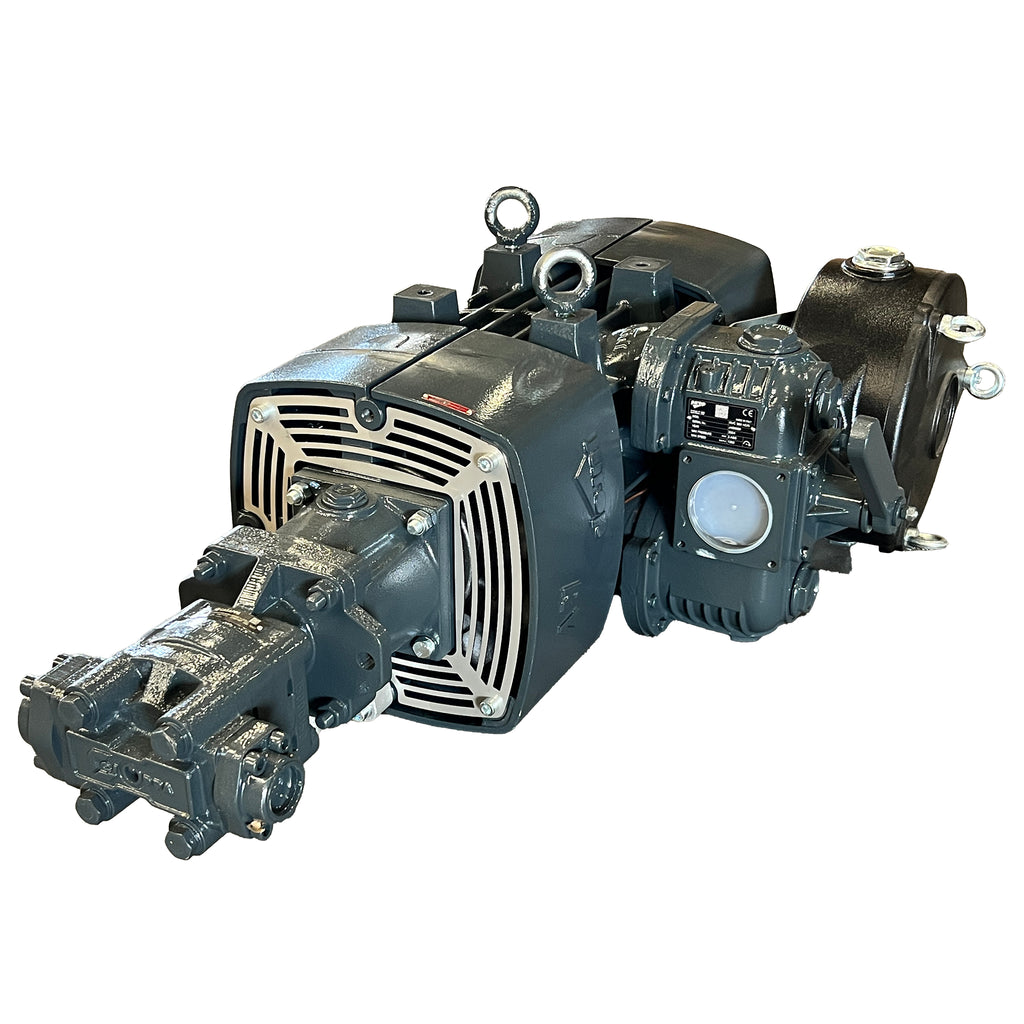

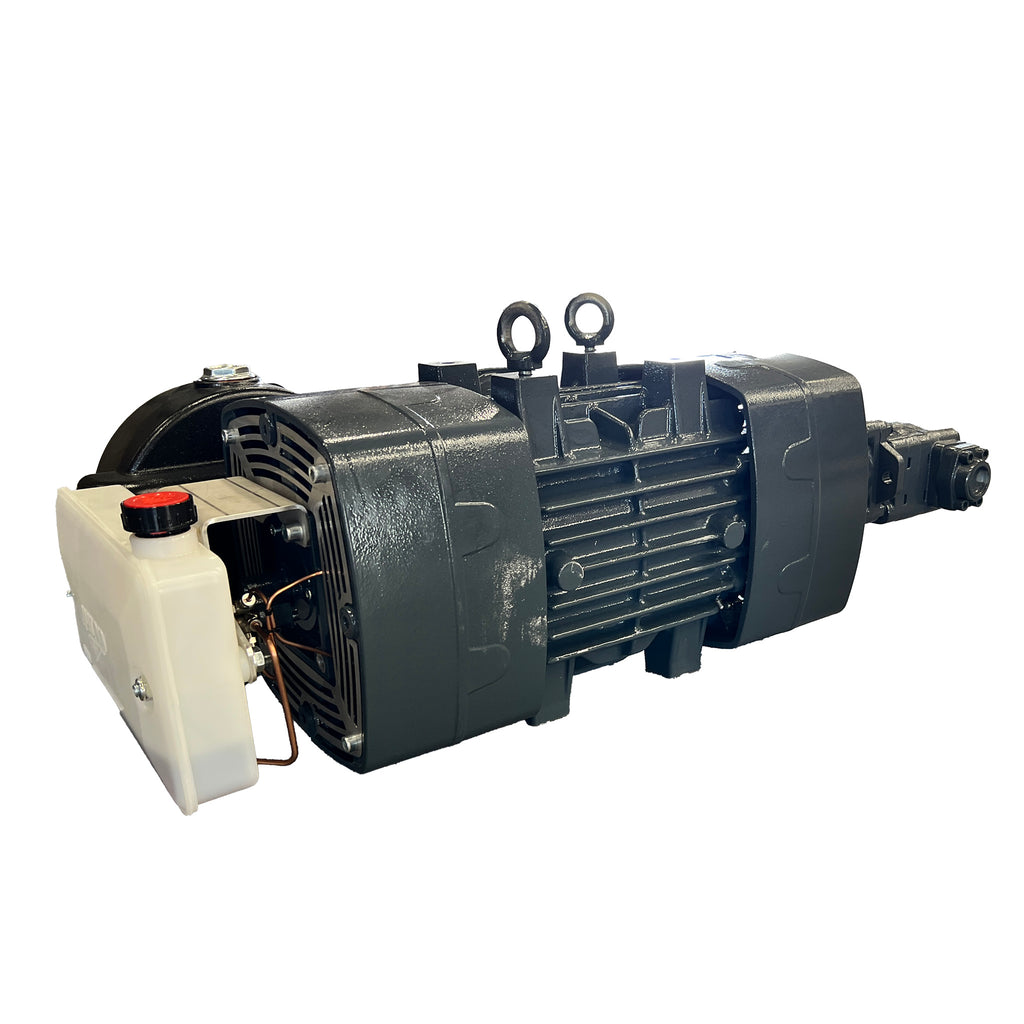

Jurop's RV360 is a rotary vane pump that is air injection cooled with two contra opposed fans, and features automatic lubrication, copper oil piping, built-in vacuum-pressure changeover valve. It has max pressure of 30 PSI and comes in at 16 horsepower. The side-mounted oil tank has 1 gallon capacity, and the pump has two vane inspection ports. The Jurop RV360 Vacuum Pump is suitable for heavy-duty operation. This pump configuration comes with a hydraulic drive.
Jurop part #: E598109446
Pik Rite part #: VP-JPR-360HYD
Specifications
RPM: Range 1100-1300
Max Vacuum: 28” / 95%
CFM at Free Air: 360
CFM at 18”: 332
Max Pressure: 30 PSI
Horsepower: 16
Noise at 18”: 76 dB
Weight: 665lbs
Oil Tank Capacity: 1 gallon
Recommended Oil: ISO 150
Downloads
RV360 Series Installation, Use and Maintenance (.pdf)
JUROP Pumps Brochure (.pdf)
Jurop RV360 Hydraulic Drive Data Sheet (.pdf)
