Description

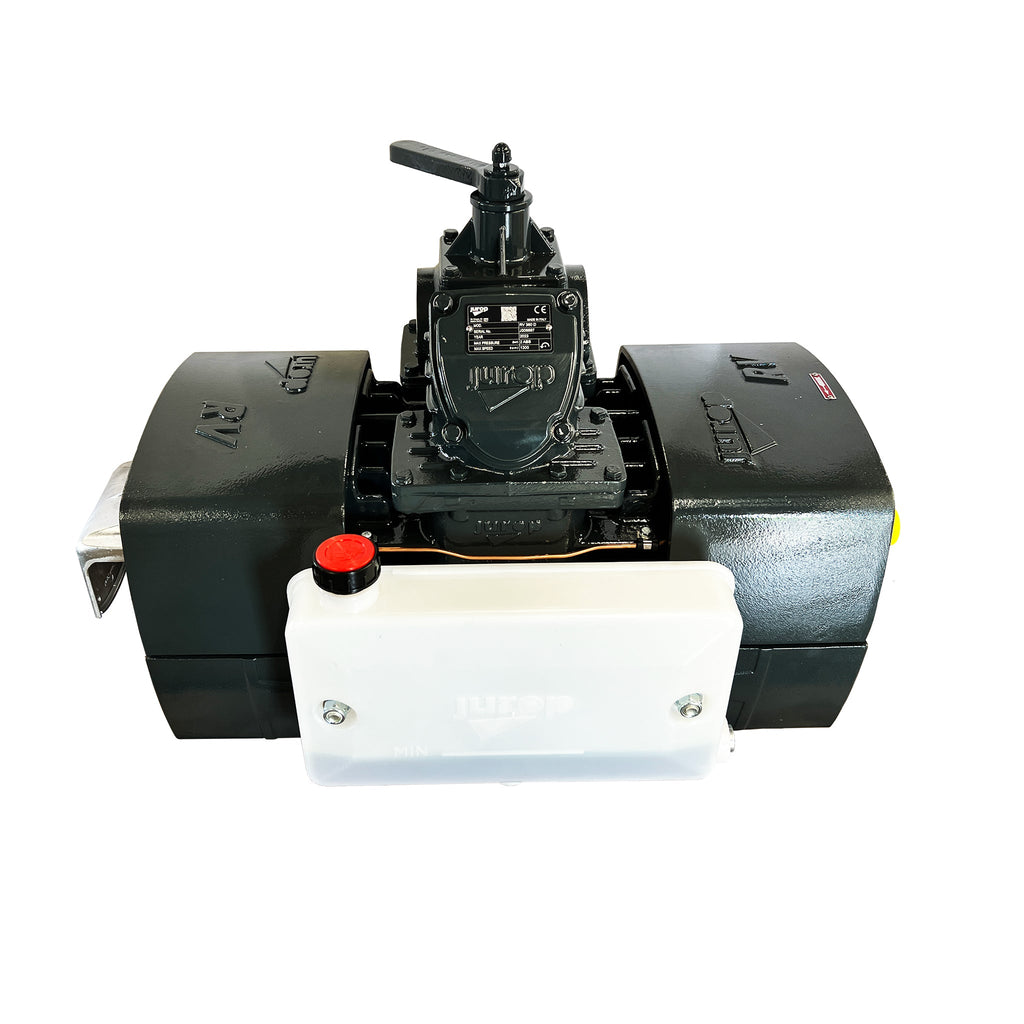

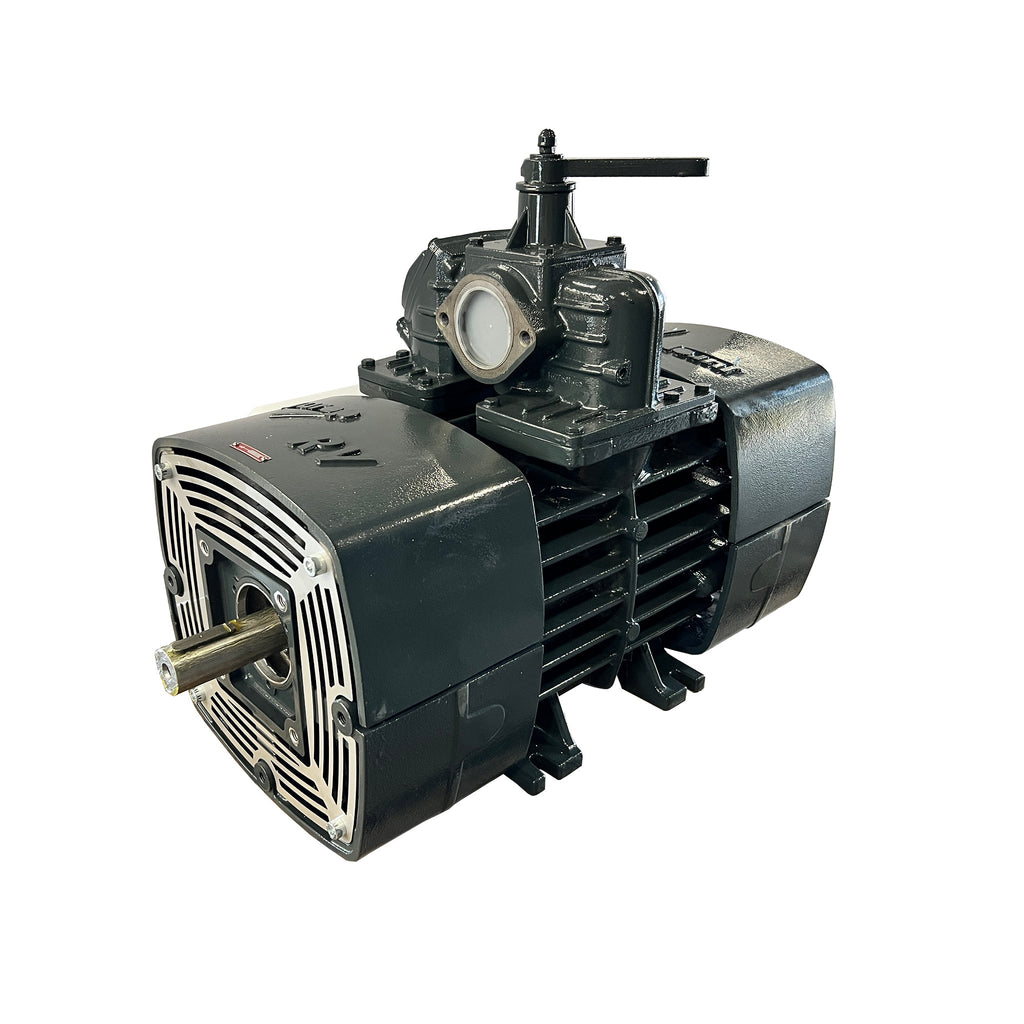

Jurop's RV360 is a rotary vane pump that is air injection cooled with two contra opposed fans, and features automatic lubrication, copper oil piping, built-in vacuum-pressure changeover valve. The pump is direct transmission. It has max pressure of 30 PSI and comes in at 16 horsepower. The side-mounted oil tank has 1 gallon capacity, and the pump has two vane inspection ports. The Jurop RV360 Vacuum Pump is suitable for heavy-duty operation.
NOTE: This pump is offered with Clockwise or Counter-Clockwise rotation. Select appropriate option.
Clockwise Rotation
Jurop Part #: A464509440
Pik Rite part #: VP-JPR-360C
Counter-Clockwise Rotation
Jurop Part #: A464609440
Pik Rite part #: VP-JPR-360
Specifications
RPM: Range 1100-1300
Max Vacuum: 28” / 95%
CFM at Free Air: 360
CFM at 18”: 332
Max Pressure: 30 PSI
Horsepower: 16
Noise at 18”: 76 dB
Weight: 430 lbs
Oil Tank Capacity: 1 gallon
Recommended Oil: ISO 150
