Description
Pik Rite Exclusive!

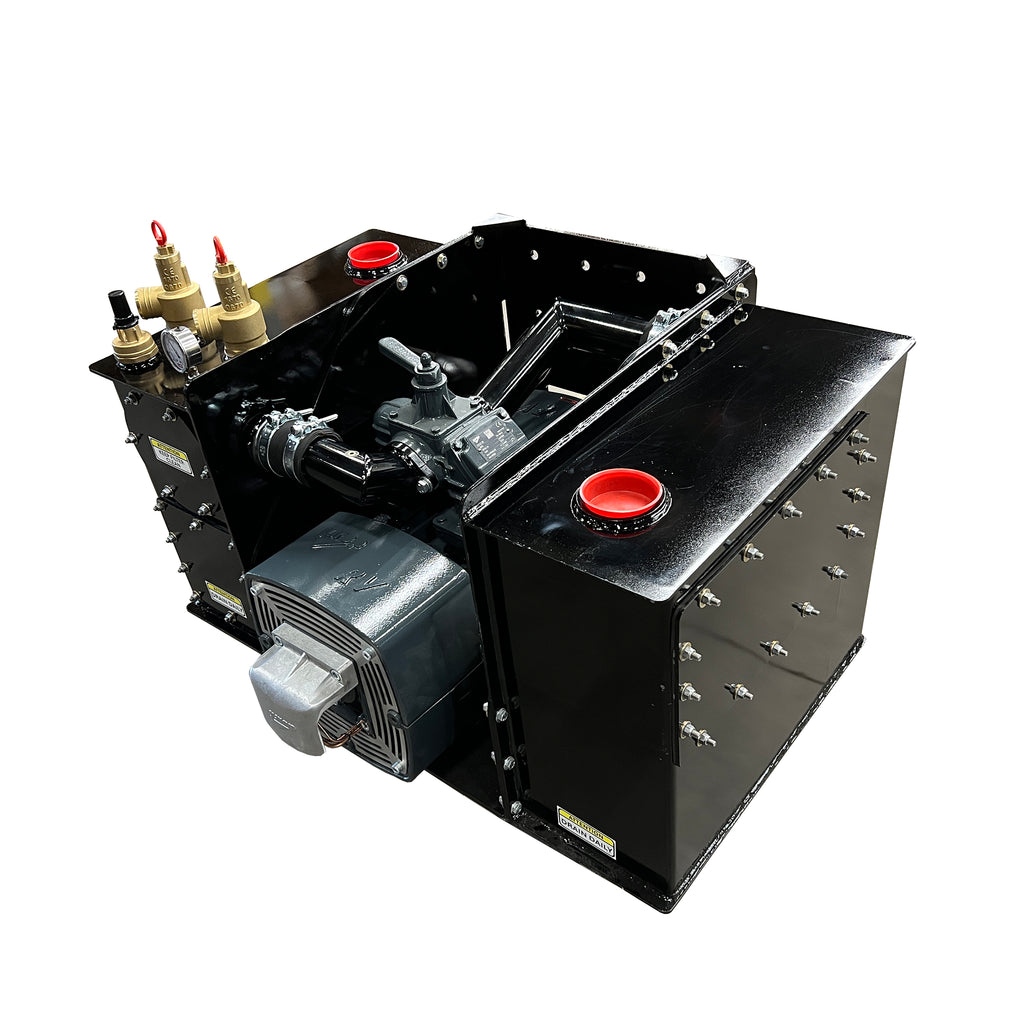

Jurop RV360 EZ Pak Vacuum Pump Package is a turnkey vane pump solution for septic trucks, vacuum trucks and other specialized applications. The system is built in an enclosure that is ready to install. Convenient access to the final filter and float ball.
Package includes:
- Pump
- Secondary
- Muffler
- Gearbox
- Oil Tank
- Vacuum/Pressure Gauge
- Automatic Lubrication System
- Relief Valves
- Final Filter
Pik Rite Part No: PSA-RV360-LH
Package Weight: 1,1100 lbs.
Pump Specifications
RPM: Range 1100-1300
Max Vacuum: 28” / 95%
CFM at Free Air: 360
CFM at 18”: 332
Max Pressure: 30 PSI
Horsepower: 16
Noise at 18”: 76 dB
Port Size: 3"
Drive Shaft: 1 3/8"
Weight: 430 lbs
Oil Tank Capacity: 1 gallon
Recommended Oil: ISO 150
