Description

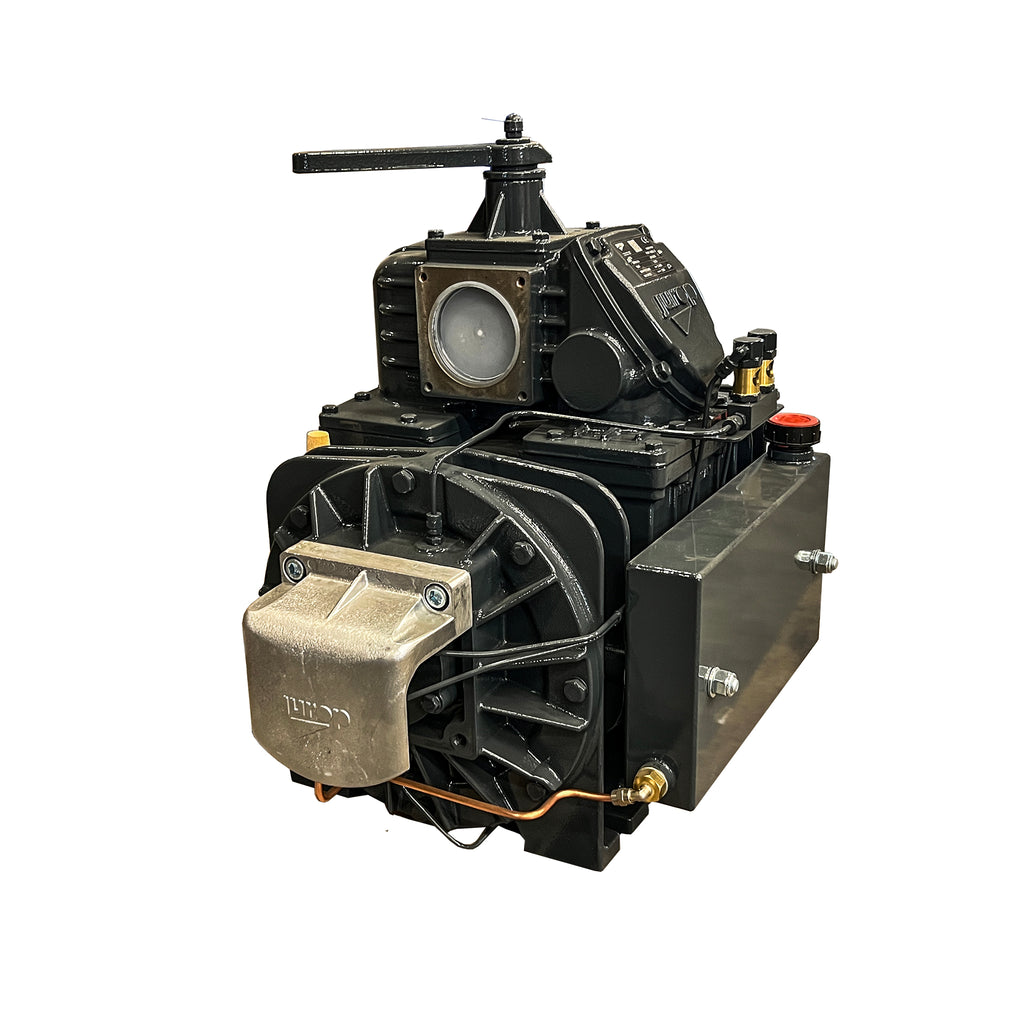

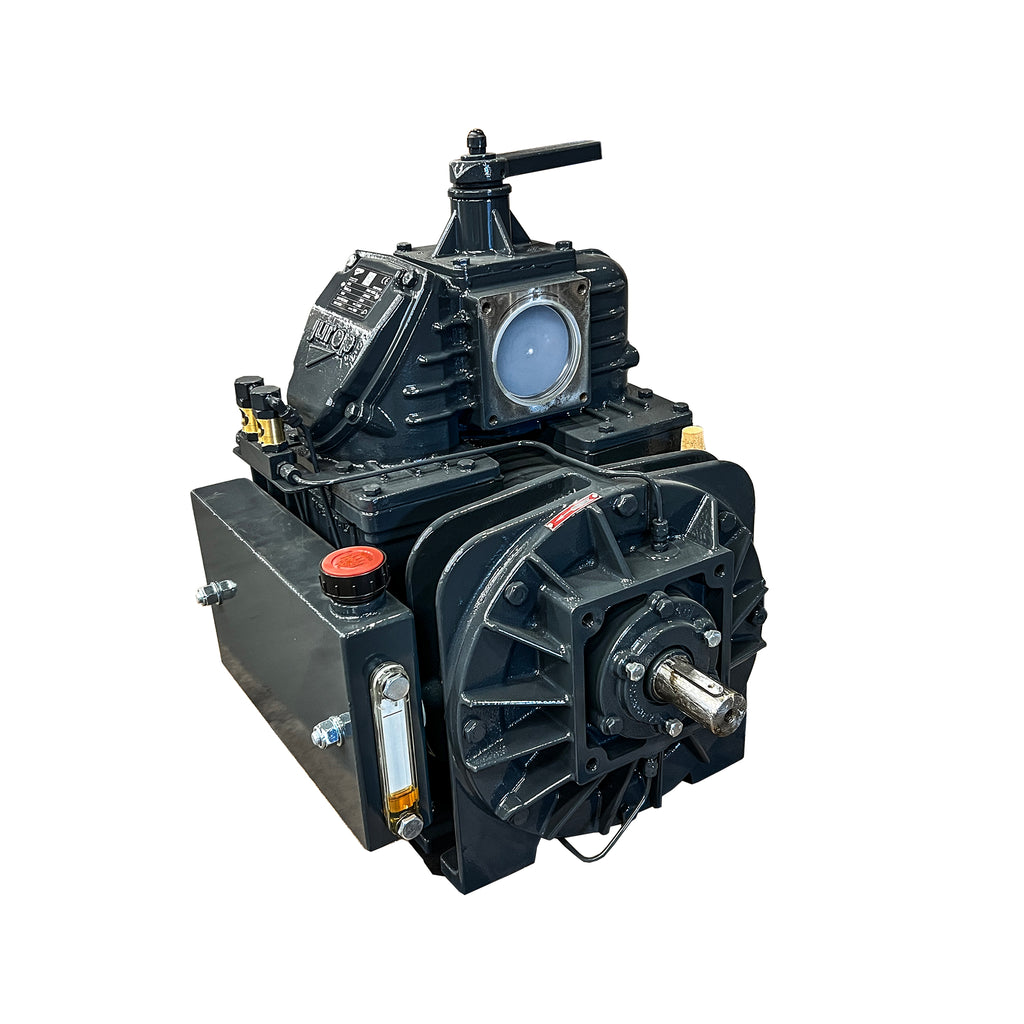

The Jurop PNR142 is a heavy‑duty, injection‑cooled rotary vane vacuum pump engineered for continuous operation in demanding vacuum and pressure applications. Rated at 500 CFM at free air, the PNR142 is commonly used on vacuum trucks, agricultural equipment, and industrial vacuum systems where durability and consistent airflow are required.
The PNR series represents Jurop’s heavy‑duty injection‑cooled line, designed for higher thermal stability and continuous‑duty service compared to standard air‑cooled models.
Pik Rite Part #: VP-JPR-142
Jurop Part #: A480909440
Key Features
- Injection‑cooled rotary vane vacuum pump
- 500 CFM @ free air
- Continuous‑duty operation
- Automatic forced lubrication system
- Heat‑resistant Kevlar vanes
- Built‑in vacuum / pressure changeover valve
- Designed for heavy‑duty applications
- Counter‑clockwise (CCW) rotation
Specifications
Maximum Airflow: 500 CFM @ Free Air
Continuous Duty Vacuum: 18 in. Hg
Maximum Vacuum: 27 in. Hg (90%)
Maximum Pressure: 30 PSI
Operating Speed: 800–1000 RPM
Rotation: Counter Clockwise (CCW)
Cooling Method: Air Injection Cooled
Lubrication: Automatic Forced Lubrication
Vanes: Heat Resistant Kevlar
Drive Shaft: 1 3/8" Smooth Shaft
Port Size: 4"
Oil Tank Capacity: 4.23 qt
Noise Level: 78 dB
Net Weight: 562 lbs.
Recommended Oil: ISO 150
