Description
Pik Rite Exclusive!

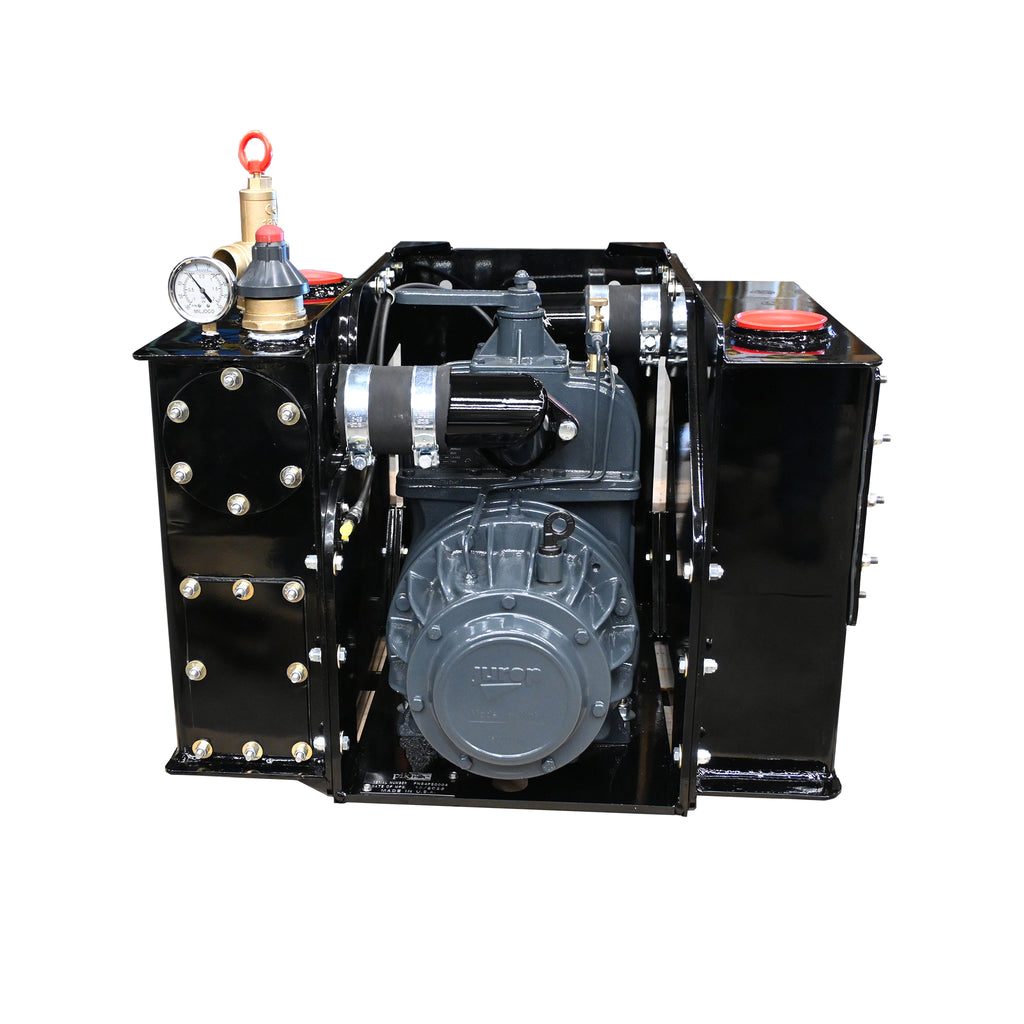

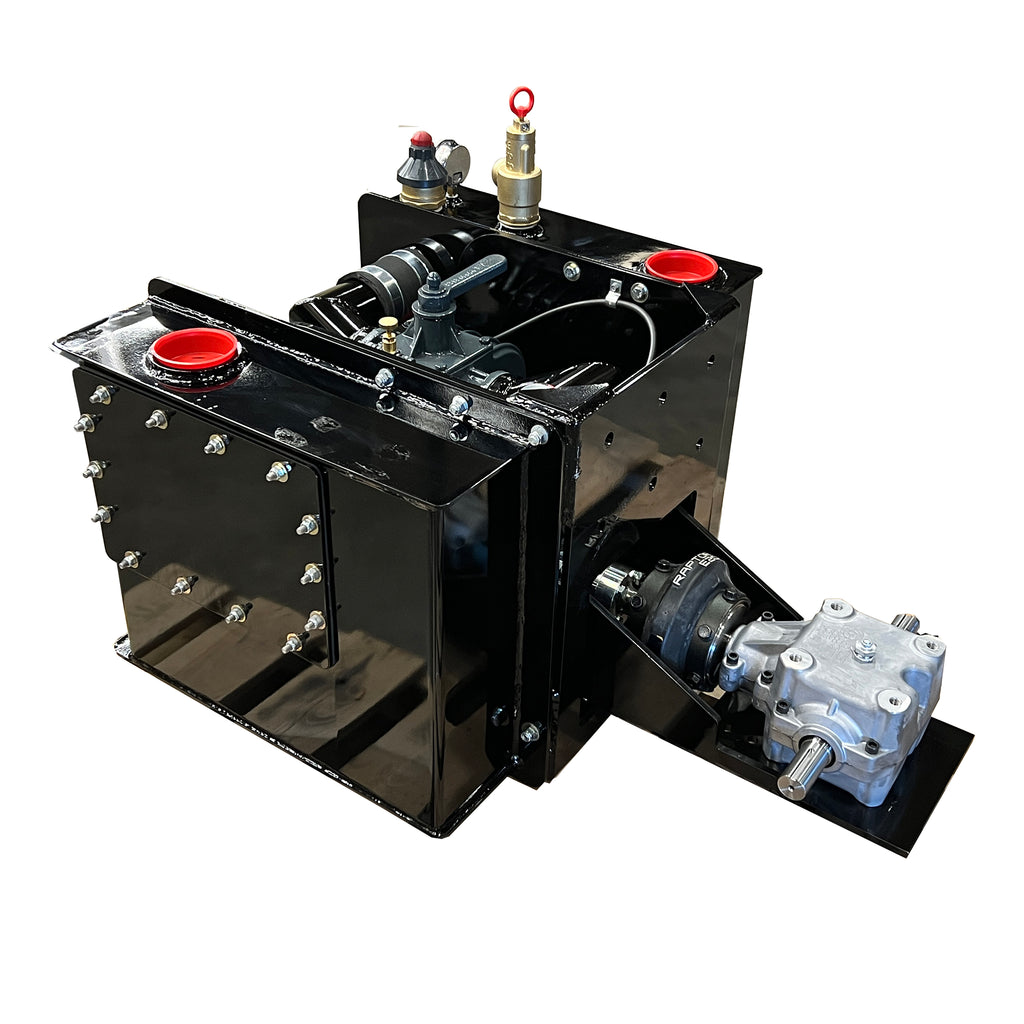

The Jurop PN 84 EZ Pak Vacuum Pump Package is a turnkey vane pump solution for septic trucks, vacuum trucks and other specialized applications. The system is built in an enclosure that is ready to install. Convenient access to the final filter and float ball.
Package includes:
- Pump
- Secondary
- Muffler
- Gearbox
- Vacuum/Pressure Gauge
- Automatic Lubrication System
- Relief Valves
- Final Filter
Pik Rite Part #: PSA-PN84-LH
Package Weight: 800 lbs.
PN84 Pump Specifications
- RPM Range: 900 - 1300
- Max Continuous Vacuum: 18”
- CFM at Free Air: 317
- CFM at 18”: 252
- Max Intermittent Pressure: 21 PSI
- Horsepower: 15
- Noise at 18”: 81 dB
- Oil Tank Capacity: 2.44 qt
- Recommended Oil: ISO 150
Pump Downloads
Installation, Use and Maintenance Manual (.pdf)
