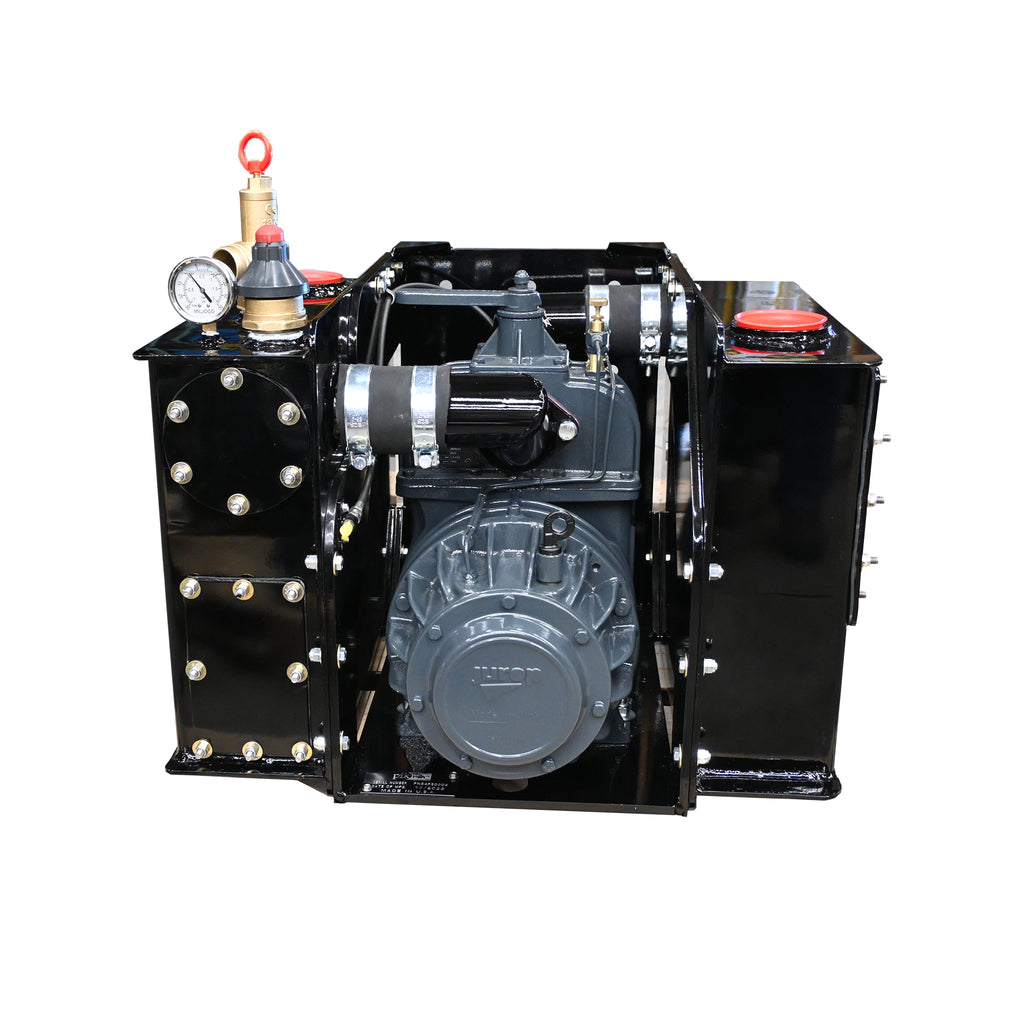

Pik Rite engineered and manufactured pump package built around the Jurop PN58 Vacuum Pump.
Pik Rite engineered and manufactured pump package built around the Jurop PN58 Vacuum Pump.

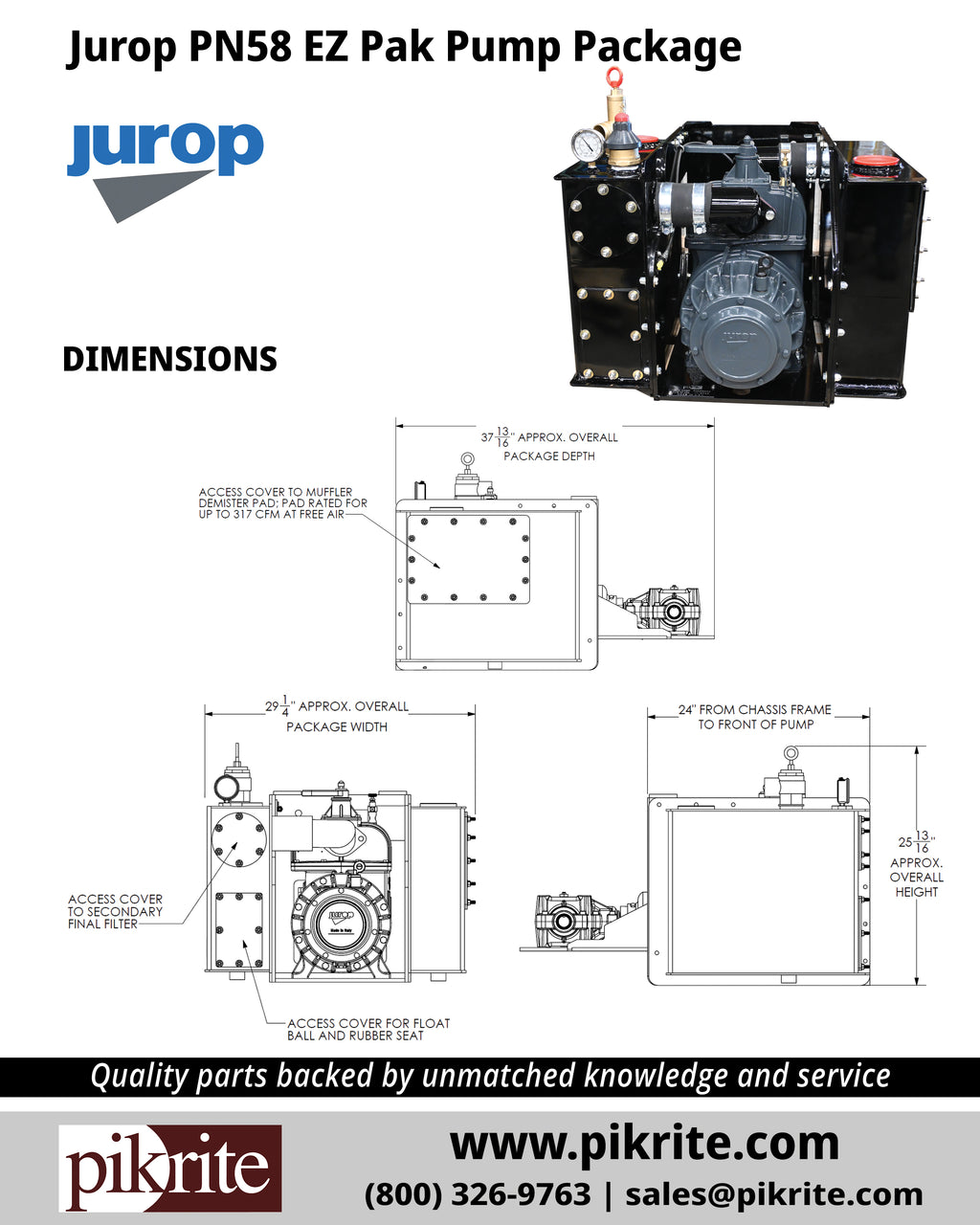

Dimensions for Pik Rite engineered and manufactured pump package built around the Jurop PN58 Vacuum Pump.
Roll over image to zoom in Click on image to zoom
Pik Rite engineered and manufactured pump package built around the Jurop PN58 Vacuum Pump.
Pik Rite engineered and manufactured pump package built around the Jurop PN58 Vacuum Pump.
Dimensions for Pik Rite engineered and manufactured pump package built around the Jurop PN58 Vacuum Pump.

Jurop PN58 EZ Pak Vacuum Pump Package - 230 CFM

JuropSKU: PSA-PN58-LH
Price:
$6,995.00

Description

Pik Rite Exclusive!

The Jurop PN58 EZ Pak Vacuum Pump Package is a turnkey vane pump solution for septic trucks, vacuum trucks and other specialized applications. The system is built in an enclosure that is ready to install. Convenient access to the final filter and float ball.

Package includes:

  • Pump
  • Secondary
  • Muffler
  • Gearbox
  • Vacuum/Pressure Gauge
  • Automatic Lubrication System
  • Relief Valves
  • Final Filter


Pik Rite Part #: PSA-PN58-LH

Package Weight: 771 lbs.


PN58 Pump Specifications

  • RPM Range: 900 - 1300
  • Max Continuous Vacuum: 18”
  • CFM at Free Air: 230
  • CFM at 18”: 205
  • Max Intermittent Pressure: 21 PSI
  • Horsepower: 9
  • Noise at 18”: 77 dB
  • Oil Tank Capacity: 2.44 qt
  • Recommended Oil: ISO 150

Package Download

Package Dimensions (.pdf)

Pump Downloads

Installation, Use and Maintenance Manual (.pdf)

Jurop Pumps Brochure (.pdf)
