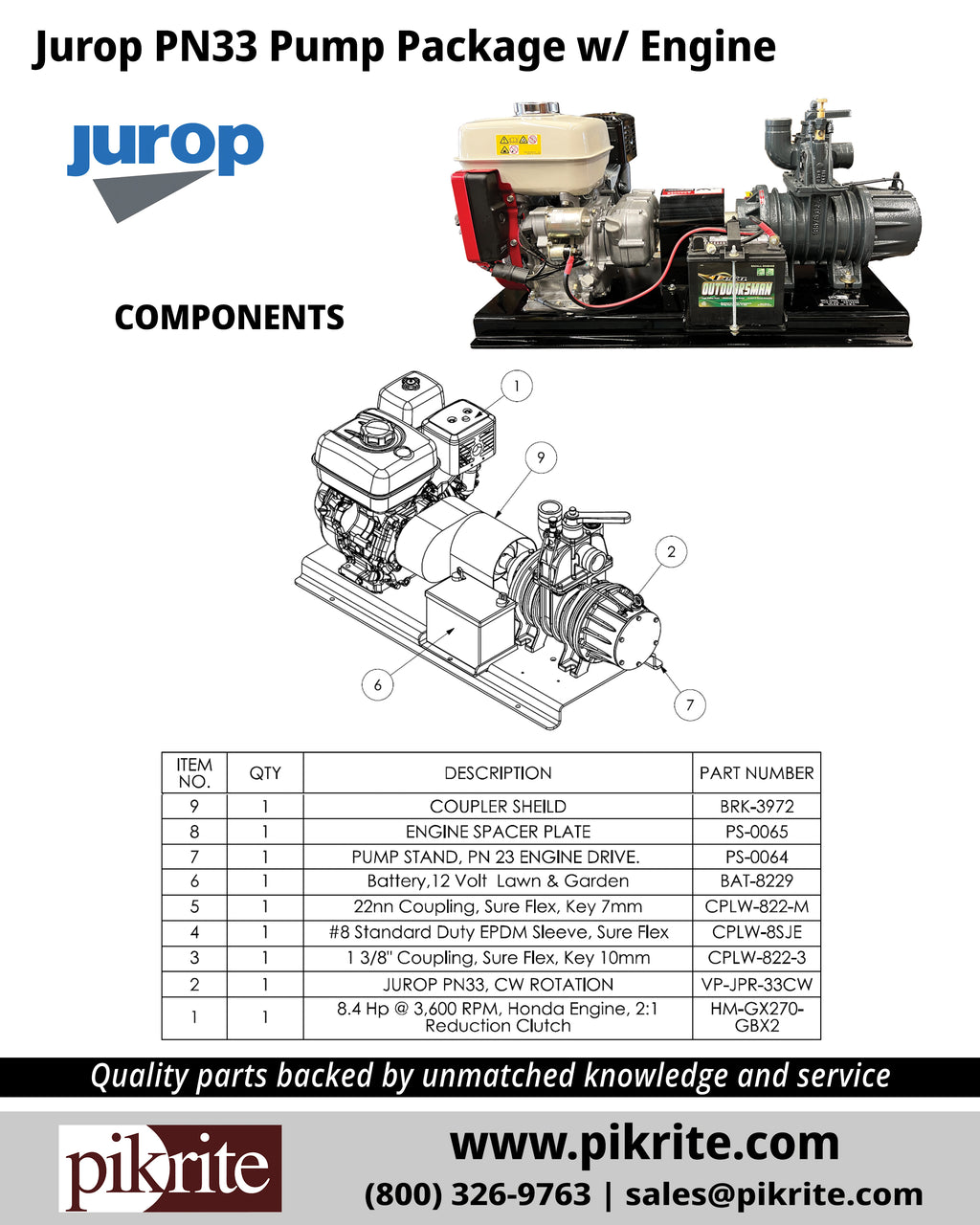

Jurop PN33 Pump Package with Engine Components

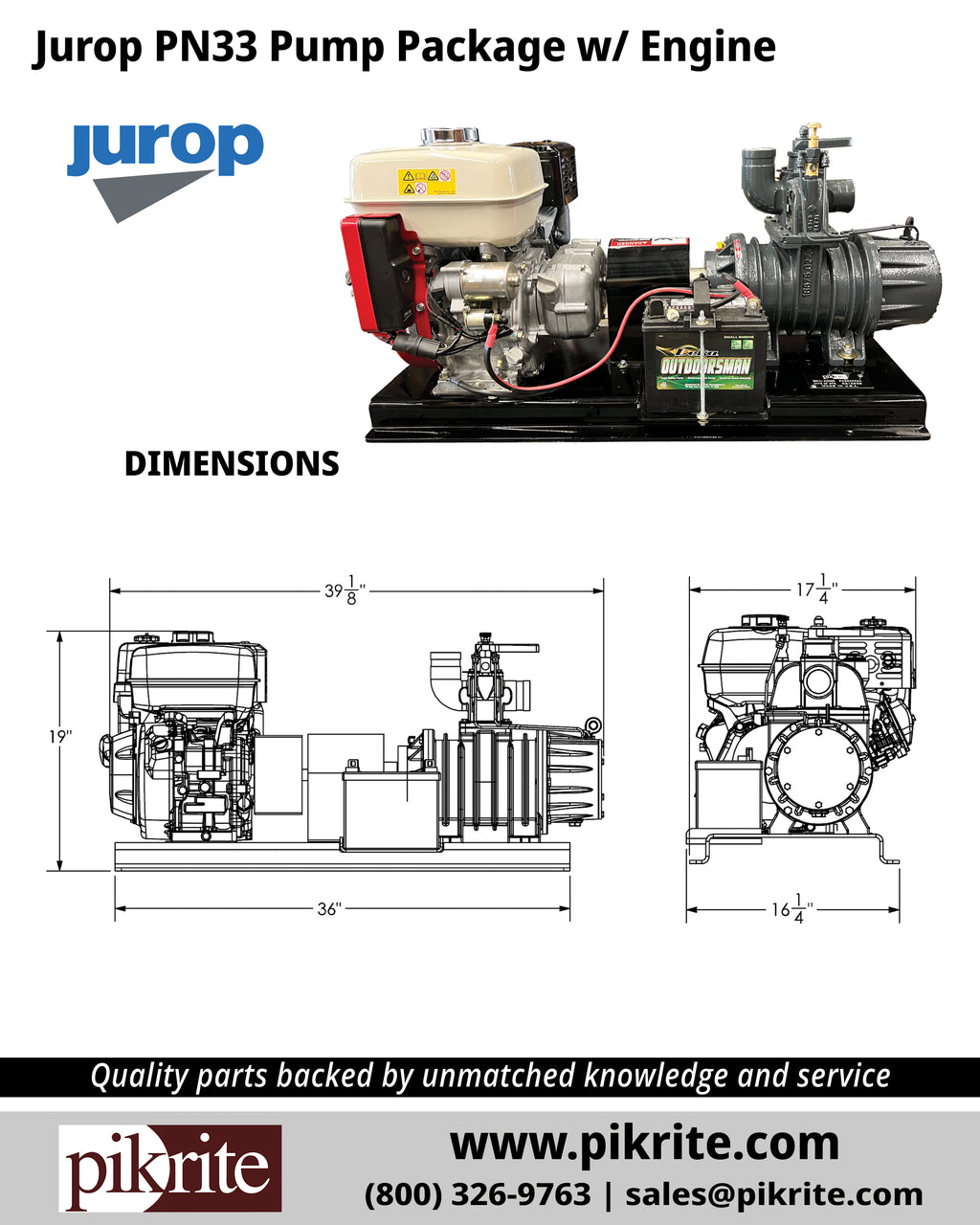

Jurop PN33 Pump Package with Engine Dimensions

Jurop PN33 Vacuum Pump Package with Honda GX270 Engine

JuropSKU: ENG-PN33
Price:
$4,850.00

Description

Vacuum Pump/Engine Package Engineered by Pik Rite.

This package integrates the Jurop PN33 Vacuum Pump with the 8.4 HP Honda GX270 and 12 Volt Lawn and Garden Battery for a turnkey solution ready to be mounted and plumbed. Direct drive configuration.

Package Weight: 350 lbs.

Pik Rite Part #: ENG-PN33

PN33 Specifications

  • Rotation: Clockwise
  • RPM Range: 900-1300
  • Max Continuous Vacuum: 27.6” / 92%
  • CFM at Free Air: 127
  • CFM at 18”: 102
  • Max Pressure: 21 PSI
  • Horsepower: 6
  • Noise at 18”: 77 dB
  • Oil Tank Capacity: 1.27 qt
  • Recommended Oil: ISO 150

Honda GX270 Specifications

  • 8.4 Hp at 3,600 RPM. 2:1 Reduction Clutch

Downloads

Honda Engine Manual (.pdf)

PN Series Specifications (.pdf)

PN33 Package Component List (.pdf)

PN33 Package Dimensions (.pdf)
