Description
Pik Rite Exclusive!

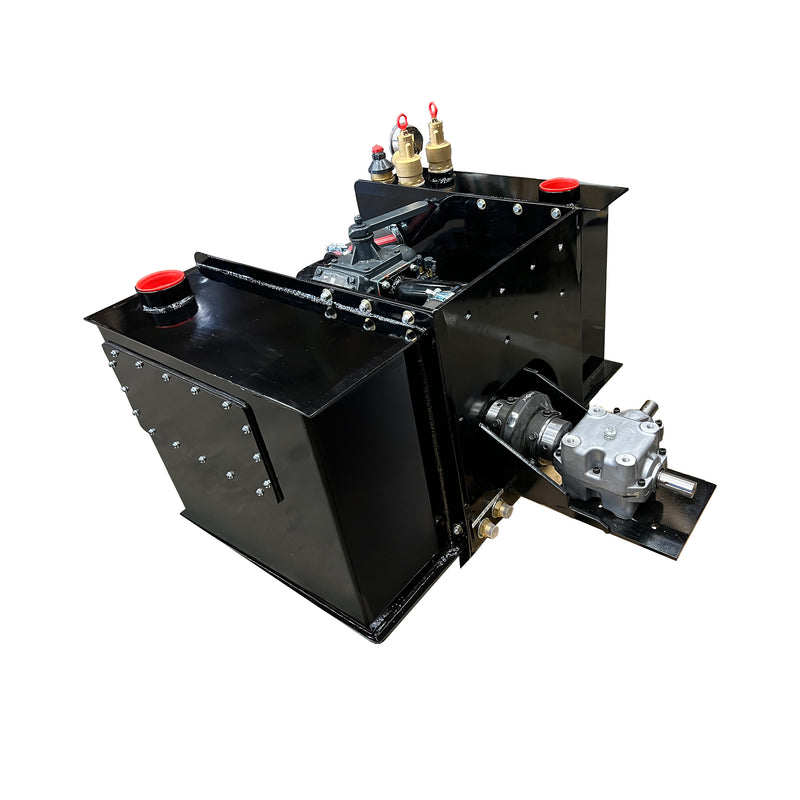

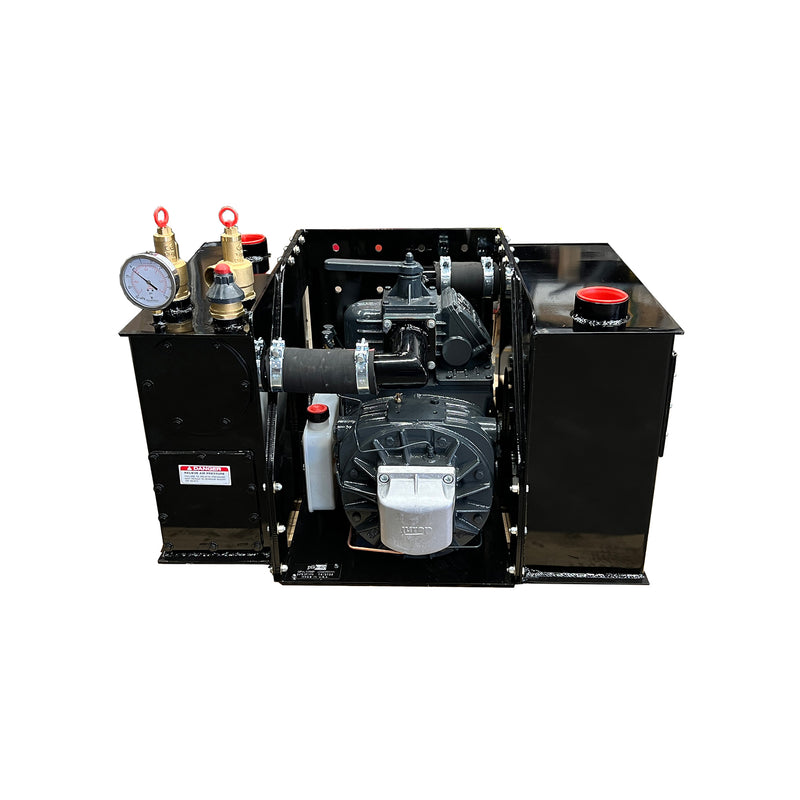

Jurop LC420 EZ PAK Vacuum Pump Package is a turnkey vane pump solution for septic trucks, vacuum trucks and other specialized applications. The system is built in an enclosure that is ready to install. Convenient access to the final filter and float ball.
Package includes:
- Pump
- Secondary
- Muffler
- Relief Valve
- Gearbox
- Oil Tank
- Automatic Lubrication System
Pik Rite Part No: PSA-LC420-LH
Package Weight: 1,118 lbs.
About the Jurop LC 420
The Jurop LC 420 is a 425 CFM rotary vane, liquid-cooled pump that performs in heavy-duty operating conditions with high throughput and minimal noise. The automatic lubricating pump can be accessed externally for simple, fast, and efficient adjustment. This pump is one of the best values on the market.
Pump Specifications
- RPM Range: 900 - 1100
- Max Vacuum: 27” / 90%
- Max Continuous Vacuum: 25” / 83%
- CFM at Free Air: 425
- CFM at 18”: 324
- Max Intermittent Pressure: 30 PSI
- Horsepower: 23
- Noise at 18”: 75-78 dB
- Weight: 462 lbs
- Oil Tank Capacity: 4.25 qt
- Recommended Oil: ISO 150
Downloads
LC420 Specifications at a Glance (.pdf)
LC Pumps Installation, Use and Maintenance Manual (.pdf)
