Description

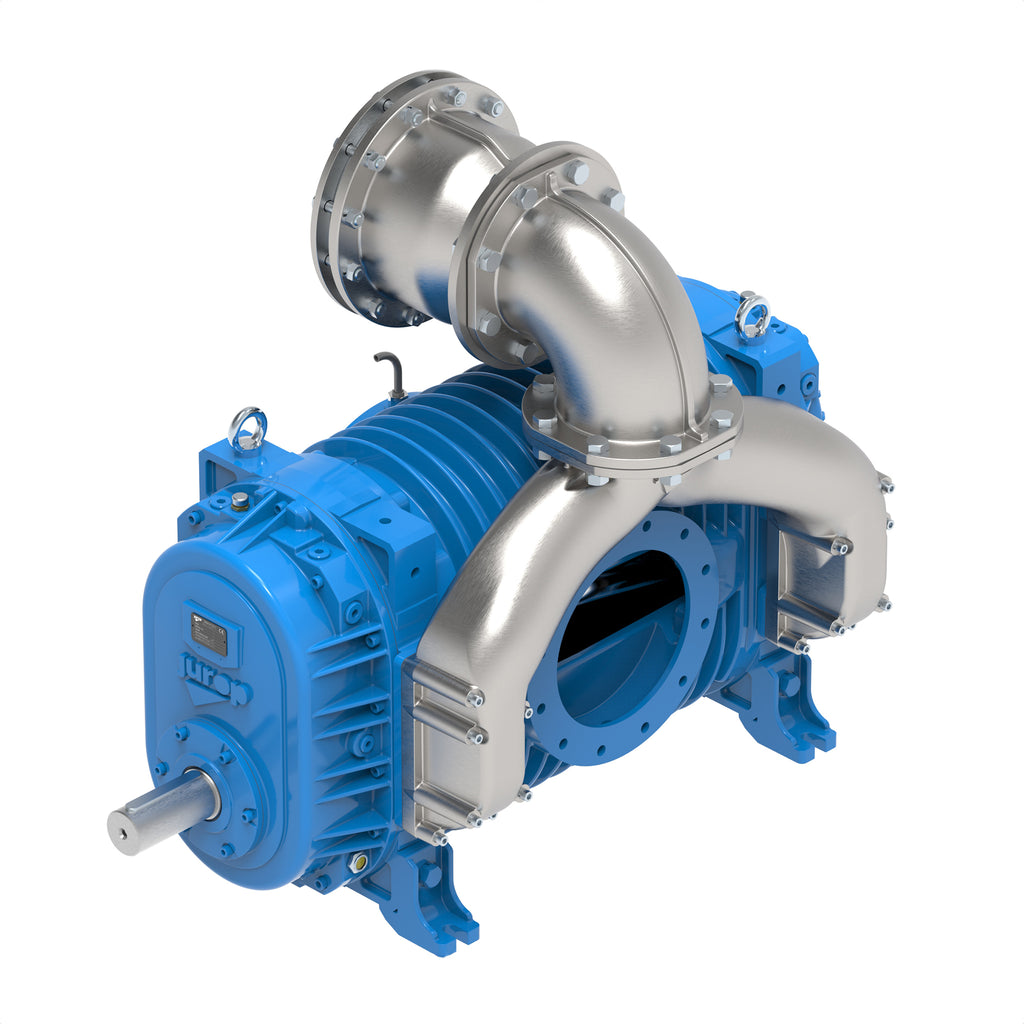

- Positive displacement vacuum pump with tri-lobe rotors and lateral injection cooling system.
- High vacuum, efficient cooling of all the moving parts and low noise level: the worm
screw profile of the lobes guarantees greater fluid movement without any vibrations.
- Operates without oil and without wear.
- Long-life high temperature seals.
- Warning system for pump overheating.
- Use on hydro excavation units, heavy-duty vacuum trucks, waste management systems, and industrial environmental applications.
| Technical Specification | Detail |
|---|---|
| Manufacturer | Jurop |
| Model | Helix 1500 |
| Rotation | Counterclockwise (CCW) |
| Air Flow | 5000 CFM @ 2500 RPM (Free Air) |
| Max Pressure | 29 psi |
| Weight | 1,984 lbs |
| Drive Shaft | 70 mm |
| Noise Level | 81 dB |
| Jurop Part Number | G960951102 |
| Pik Rite Part Number | VP-JPR-HELIX1500 |
