Description

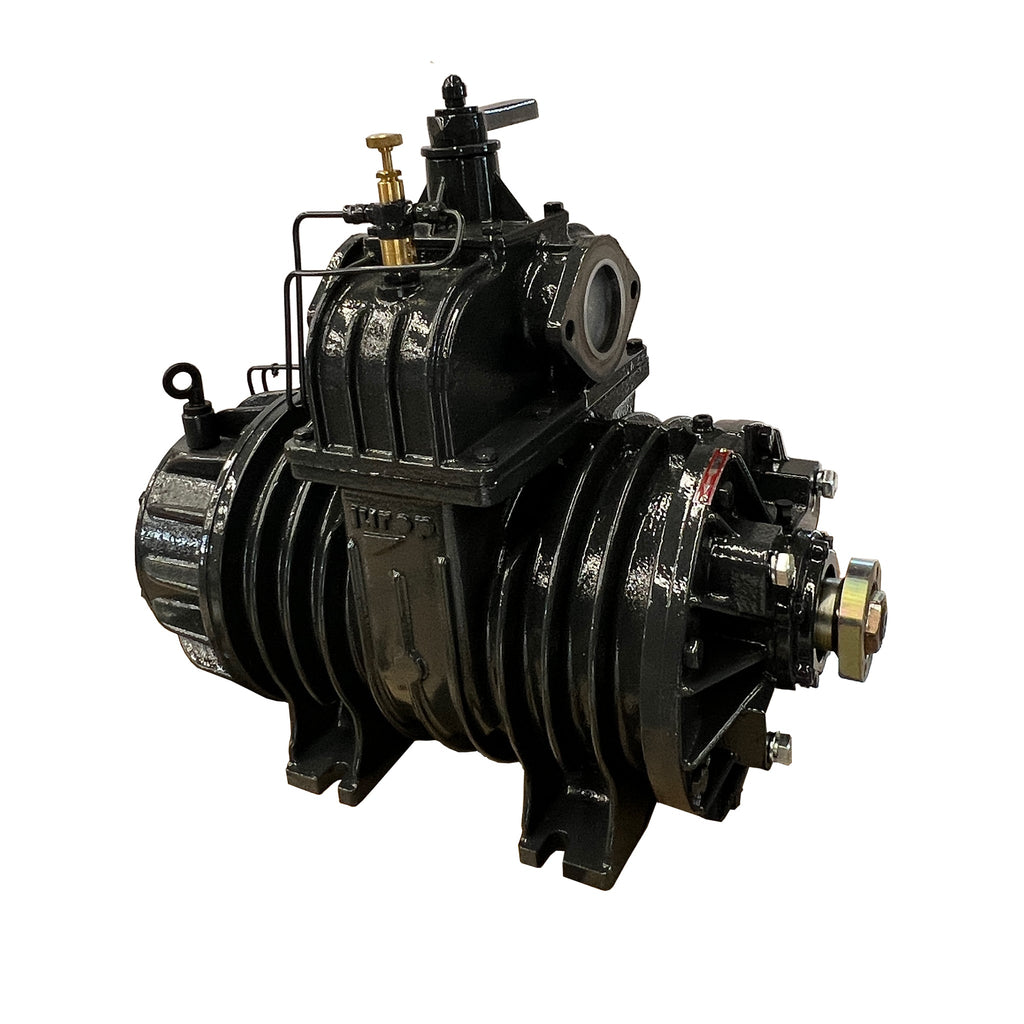

Jurop PN84 Vacuum Pump 317 CFM Air-Cooled
The Jurop PN84 is a 317 CFM, air-cooled rotary vane vacuum pump designed for vacuum tank and liquid-waste equipment. It delivers 252 CFM at 18 inches Hg and is available in clockwise or counter-clockwise rotation. Select the rotation that matches your drive configuration before ordering.
Clockwise Rotation
Jurop Part #: A050806140
Pik Rite Part #: VP-JPR-84C
Counter-Clockwise Rotation
Jurop Part #: A050906140
Pik Rite Part #: VP-JPR-84
Specifications
- RPM Range 900 – 1300
- Max Vacuum 18”
- CFM at Free Air 317
- CFM at 18” 252
- Max Pressure 21 PSI
- Horsepower 15
- Noise at 18” 81 dB
- Port Size: 3"
- Shaft: 1 3/8"
- Weight 254 lbs
- Oil Tank Capacity 2.44 qt
- Recommended Oil ISO 150
